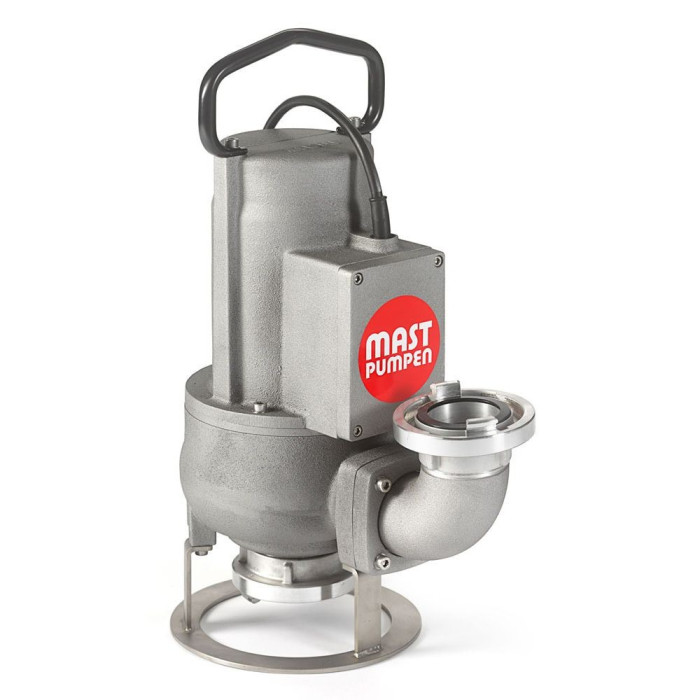

MAST ATP 15 L SUBMERSIBLE SEWAGE PUMP - 230 V

Tough: made for rough work

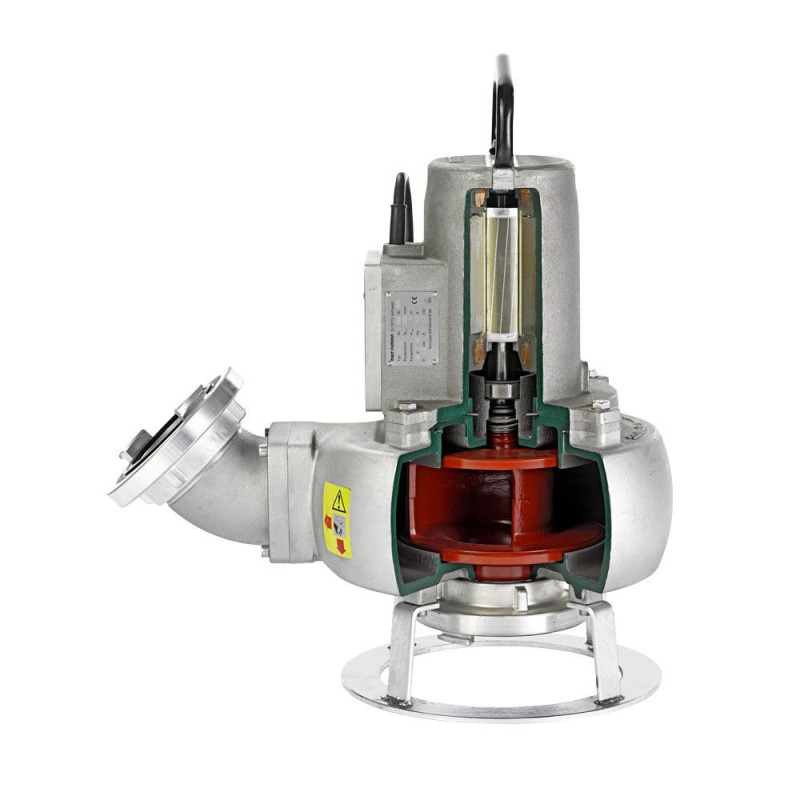

The non-clogging channel impeller is made of particularly impact-resistant special cast iron in accordance with DIN 1561, so that long-fibrous solids with a high density can also be conveyed. Since the impeller has a grain passage of up to 80 mm, no protective screen is required.

Maintenance-free: For constant operational readiness
Oil filling, lubricating points, use of sealing compounds, adjustment work: none of this is necessary, the pump is always ready for use. A special mechanical seal makes the pump reliably safe to run dry.

Robust: defies the toughest conditions
The pump and drive motors have already proven their high reliability and robustness thousands of times. As a further development of the robust MAST construction pumps, our transfer pumps defy the toughest conditions.

Resistant: uncompromising material quality
The motor housing and all housing parts that are subject to heavy loads in use are robust cast parts made of seawater-resistant aluminum alloy according to DIN EN 1706. The seals are of oil-resistant NBR quality, the screws are made of stainless steel. The pumping of mineral oil/water mixtures is also possible without any problems.

Features:
- Weight: 36 kg
- Size: 43 × 25 × 59 cm
- Motor: 230 V
- Power P1: 2,7 kW
- Nominal current: 13,00 A

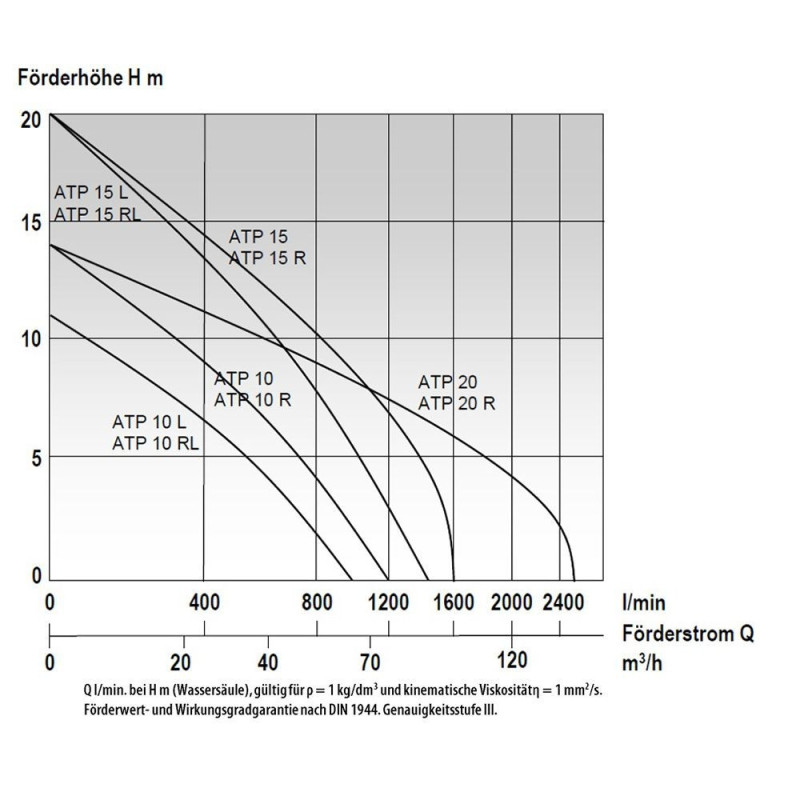

- Head H (max.): 20 m
- Flow rate Q (max.): 1,500 l/min
- Connection thread: G 3″ / G2,5″ (suction/pressure)
- Storz coupling: 75-B
- Free passage of hard particles: up to 65 mm
- Connection cable: H 07 RN-F 3G 1.5 (20 m)
- Connection plug: Safety plug 16A IP67 (blue) according to DIN VDE 0620
