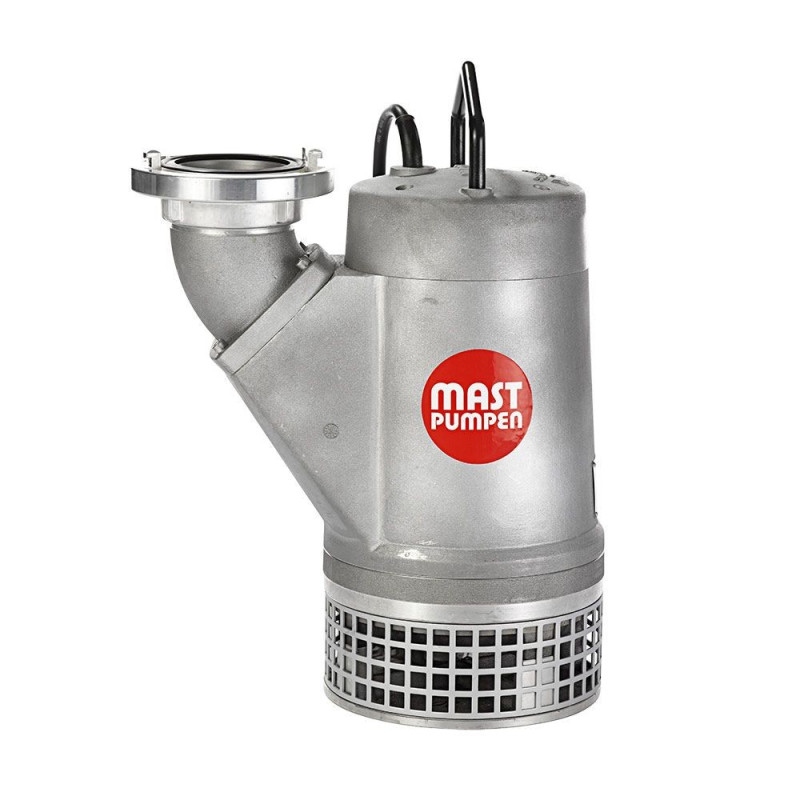

MAST submersible pumps TP according to DIN 14 425 are powerful, robust, yet light submersible waste water pumps for fire brigades, civil protection and municipalities. In terms of quality and material, they correspond completely and without exception to the guidelines of the DIN standard.
Tough: Made for the tough
impeller and diffuser are made of particularly impact-resistant special cast iron according to DIN 1561 so that coarser dirt particles can also be transported.
Maintenance-free: For permanent readiness for use

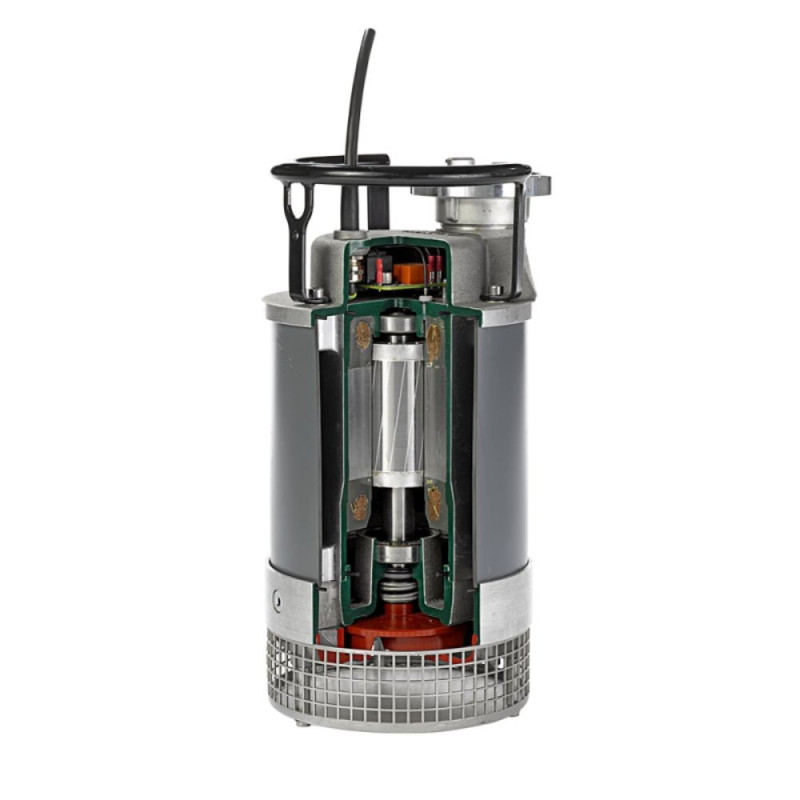

Oil filling, lubrication points, use of sealants, adjustment work: None of this is required, the pump is always ready for use. Replacing wearing parts is quick and easy thanks to the modular design and the use of fewer screws. A special mechanical seal makes the pump reliably safe to run dry.
Resistant: uncompromising material quality
The motor housing and all housing parts that are subject to heavy loads in use are robust cast parts made of seawater-resistant aluminum alloy in accordance with DIN EN 1706. The seals are of oil-resistant NBR quality and the screws are made of stainless steel. The pumping of mineral oil/water mixtures is also possible without any problems.
Strong: For a perfect frictional connection
The built-in cable strain relief ensures a very good frictional connection between the cable and the sealing set. The use of sealants such as silicone is not necessary.
100% trouble-free operation thanks to full mast motor protection:
The MD electronics (motor and direction of rotation monitoring electronics) is an invention of MAST. For pumps in the 400 V version, it offers a unique full motor protection against environmental disturbances. It has proven itself thousands of times in demanding applications.
- safe to run dry
- direction of rotation automatic
- temperature protection
- undervoltage protection
- seal monitoring
- phase failure protection
Features:
- Weight: 45 kg
- Size: 26 x 44 x 57 cm
- Motor: 400 V
- Power P1: 5,3 kW
- Nominal current: 9,3 A

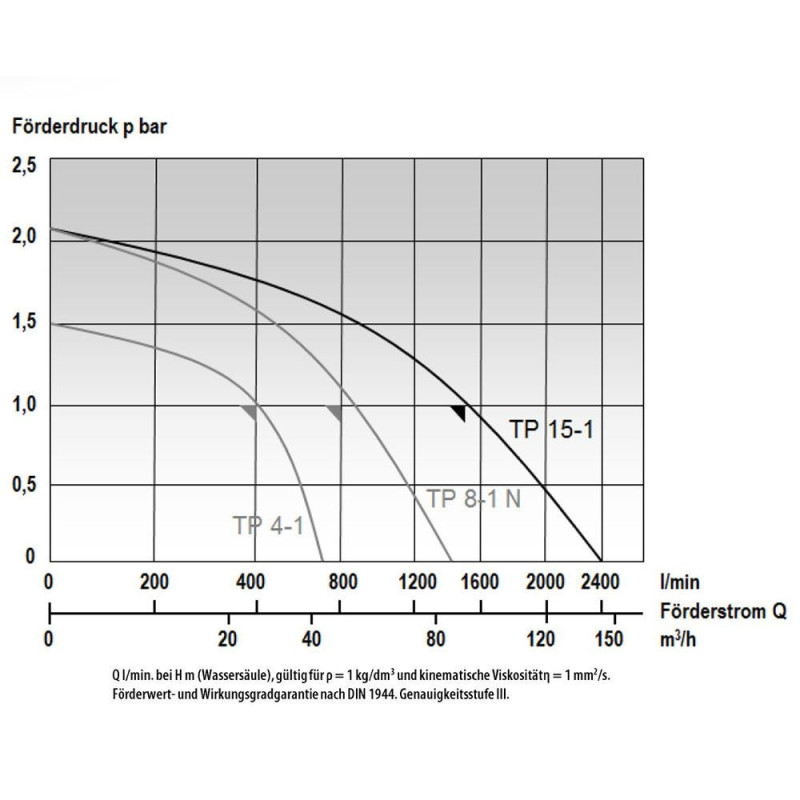

- Delivery pressure (max.): 2,1 bar
- Flow rate Q (max.): 2.400 l/min
- Connection thread: G 4″ female thread
- Storz coupling: 110-A
- Free passage of hard particles: up to 15 mm
- Connection cable: H 07 RN-F 4G 2.5 (20 m)
- Connection plug: CEE 16A 5-pin motor protection plug with on/off switch, protection class IP X4
