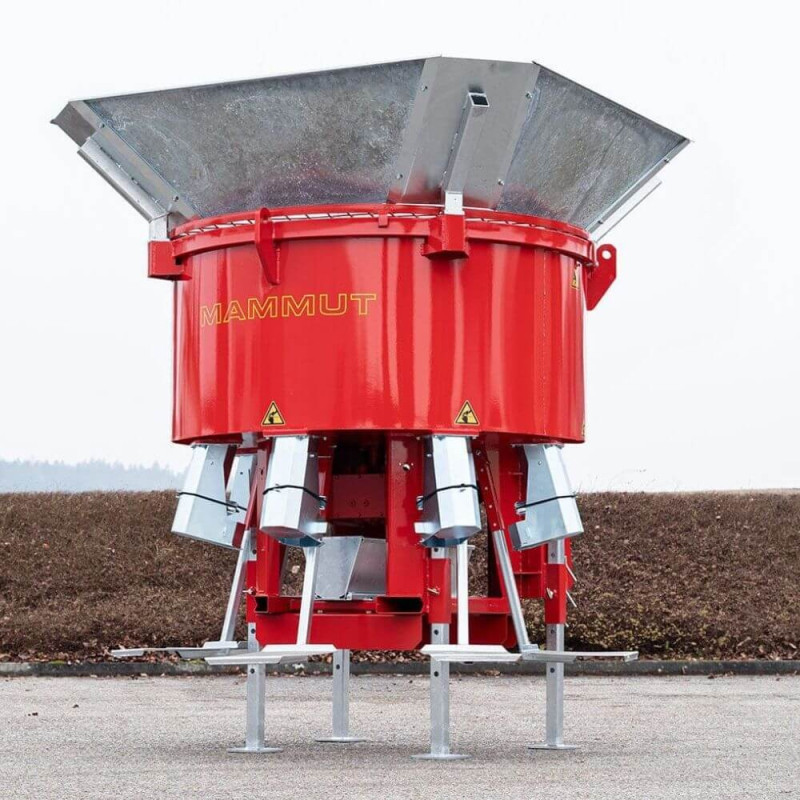

MAMUT TP 175 5S SANDBAG FILLING MACHINE

The type TP 175 5S in the MAMMUT sandbag filler range is an extraordinary aid to flood protection work and gives the highest performance: Thanks to a filling volume of 1,000, the drum diameter of 1,750 mm and the 5 filling openings, you can achieve an impressive bagging performance of up to 3,800 bags per hour. This machine is also popular due to the large amount of space for the filling staff: this ensures a convenient and pleasant working environment.

ERGONOMIC & EFFICIENT
The patented bagging system makes it possible to fill the bags ergonomically in the shortest possible time.

INSENSITIVE AGITATOR
The high-quality mixing cross of the TURBO MIX series also
promises the highest mixing performance even with wet, coarse or frozen sand.

FLEXIBLE USE:
The series-standard PTO drive guarantees filling performance even in the event of a power failure. The filling mixers can alternatively be operated by means of an electric motor.

EXPERIENCE IN FLOOD PROTECTION:
MAMMUT has been making quality sandbag filling machines for all of Europe for many years now. A number of fire services,
municipalities and technical relief agencies count on the Technology from Austria.

E-DRIVE AS AN ACCESSORY
The specialisation in the field of flood technology means that a wide range of accessories is available for the filling mixers from MAMMUT. For instance, the electric motor also includes a galvanised transport trolley as well as a control box to facilitate operation during the filling operation.

SEAMLESS WORK FLOW
The major benefit of this unit lies not only in the large volume but also in the fact that the bagging process doesn‘t have to be interrupted during loading by means of the loader bucket as a result of the design. This provides a high degree of operational safety, as the bagging team is on one side and the loading is on the opposite side. This ensures comfortable working conditions without interruptions.

EQUIPPED FOR EVERY NEED
The TP 2000 4S sandbag filling machine can be individually adapted to meet any requirement: Depending on such a requirement, a matching transport trailer or even a skip container frame is available. An electric agitator for wet sand or optional floodlights make the operation even easier.

Technical data:
- Drive: Tractor PTO shaft
- Drum diameter: 1,750 mm
- Payload without hopper: 1.000 l
- Bags per hour: approx. 3.800
- Openings for the filling staff: 5
- Warranty: 3 years

Additional equipment:
- Hot dip galvanised filling hopper, 4-part, 2.35 m x 2.35 m
- 15 kW electric drive
- Floodlights
- Light bar for road transport
- Sewing machine
