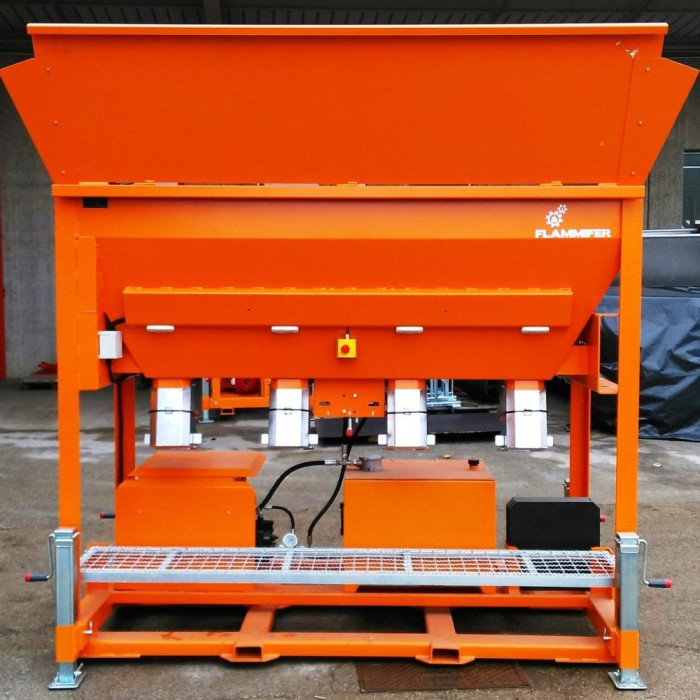

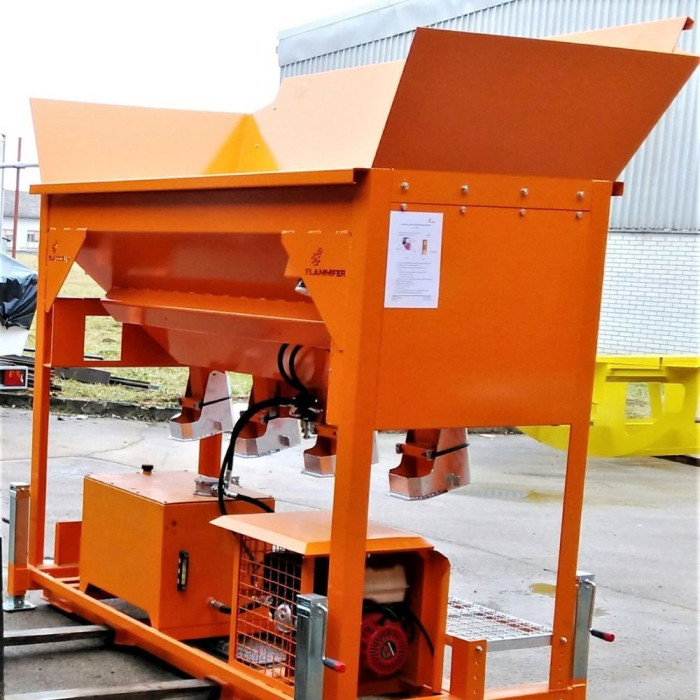

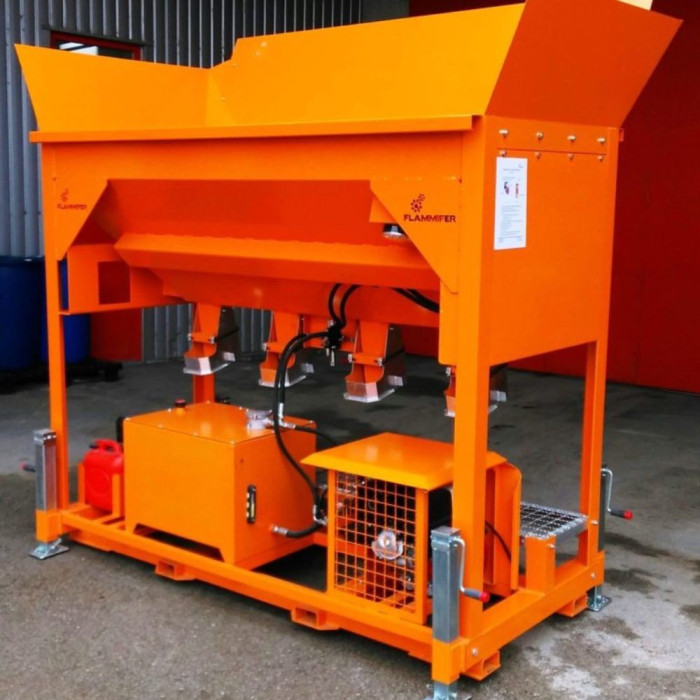

The FLAMMIFER FF-PP 1.2 sandbag filling machine is a simple and robust construction used for flood protection and other emergency situations. This highly efficient machine quickly fills the bags and completely eliminates the need for shovels.
Description:
- the sandbag filling machine is made of steel
- the sand dosing system into the hoppers is implemented using screw conveyors with a sand mixer. The screw conveyors are driven by a hydraulic motor and a chain with manual loading
- the bag filling outlets are designed in such a way that the person filling the bags avoids the possibility of head injuries during filling
- the bag platform on which the bags stand during filling is made of a Ø4 mm hot-dip galvanized mesh profile with the possibility of adjusting the height of the platform on which the bags stand during filling (for the height of the sandbag).
- a protective net above the screw conveyors. Metal anti-spill protection, foldable, height 600 mm. Mesh protection of the unit on all four sides.
- protective metal drip tray above the drive motor, which prevents sand from entering the rotating parts of the motor.
- telescopic stabilizers for leveling and additional safety when using the filler via a screw mechanism, the stabilizers range after extension is 2000×2400 mm.
- the machine is adapted for transport and manipulation of the working machine and forklift on all four sides
- ears inside the lifting funnel.
- Work area lighting (4 sockets and control point) in LED design with power supply from the motor, independent of external power supply, 5 lamps under the shade
Technical data:
- device dimensions l/w/h: 2,300 x 1,200 x 1,900 mm
- filling funnel volume: 1.2 m3, made of stainless steel 52.3, thickness 3 mm
- metal spill protection, foldable, height 600 mm
- filling capacity: 1,600 bags/h
- possibility of filling bags 60×40 and 50×40 cm
- bag filling outlet, conical, 4 pieces
