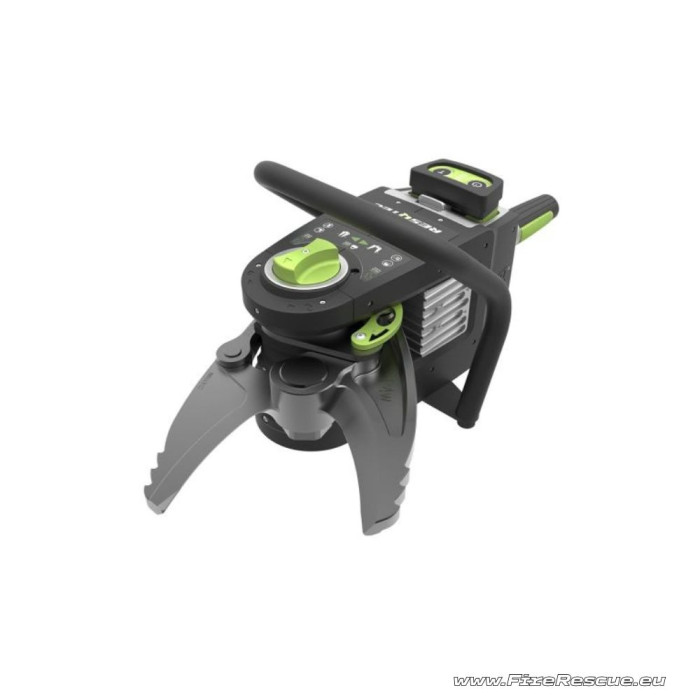

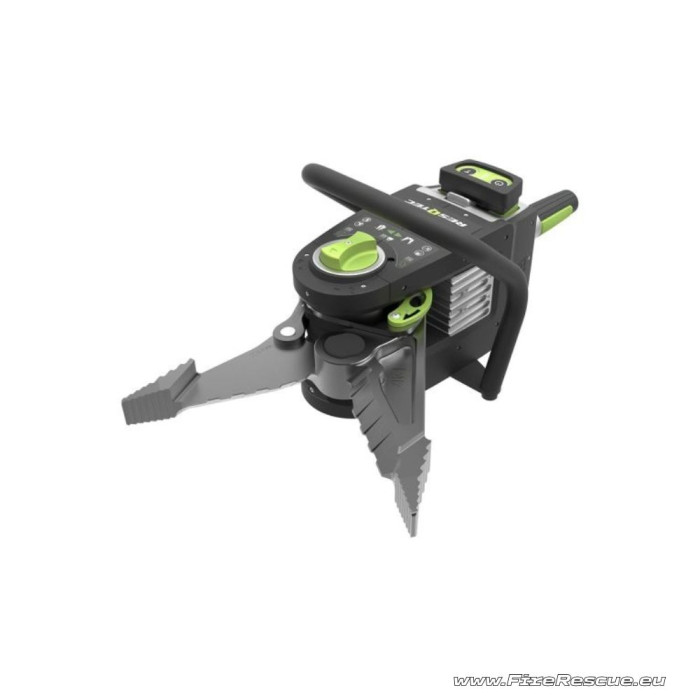

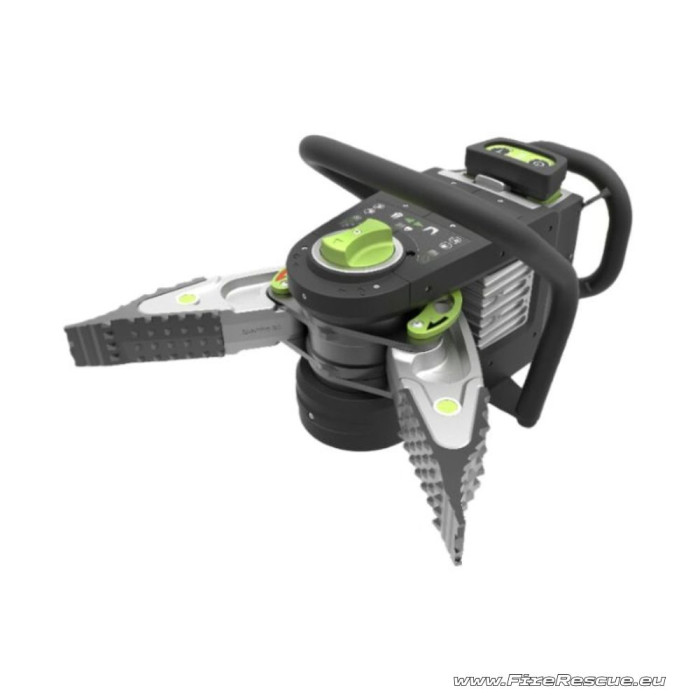

RESQTEC P4X EDD BATTERY SPREADER

RESCUE TOOL 3 IN 1
With a quick and easy jaw change, you get three tools in one:
- rescue spreader
- rescue cutter
- rescue combi tool

JUST SWITCH
Designed with aerospace gear technology and the latest innovations in electric motor and Lithium-Ion battery technologies. Its reliable design requires low maintenance and minimizes any chance of breaking down. It is the ideal rescue tool for rapid deployment. It takes you into places no other rescue tools can.Being interchangeable, it can be converted from being a dedicated spreader to a cutter or combitool within seconds.+

- The ability to rotate its head for 61 degrees enables psreading and cutting in tight spaces. It can even work around corner.
- It takes you into places and complete jobs  no other rescue tool can

EDD TECHOLOGY
A new era starts for rescue extrication equipment: Electronic Direct Drive (EDD) Technology direct from the motor to the output force. No need for hydraulic fluids, pump, valves or seals. Simply direct from a compact, powerful and efficient motor to output force. Highly-efficient for a long running time.

NO HYDRAULICS
Problems happen when hydraulic systems overheat. Battery-powered hydraulic rescue tools utilize a captured-fluid system with a small hydraulic reservoir that has very poor cooling capability. The result is rapid heating of the internal fluid and tool components, which can have a serious adverse effect on performance, battery run times, and reliability. EDD is the answer to eliminating this problem.

LONG BATTERY RUN TIMES
EDD is powered by the latest Lithium-Ion technology. The EDD battery conforms to the IEC 62133 safety standards and the UN 38.3 shipping requirements for lithium batteries. The EDD motor technology produces a staggering 1.4kW+ of power, similar to a small gasoline engine currently used in hydraulic pumps. This power is then harnessed by the EDD direct drive mechanical system to provide enormous spreading and cutting forces and extremely long battery run times.

FULL VARIABLE SPEED
Hydraulic systems don’t allow full control over its speed. EDD does; it lets you be in full control of its speed. The control handle works similar to an accelerator; just open it for optimum control.

OPTIMAL SAFETY – NO PRESSURE OR COMPRESSION
EDD contains no hydraulic fluid under pressure nor a pump or seals. A less obvious though important advantage is the lack of compression within the system. Compression of hydraulic fluid creates spring reaction forces. EDD has no such fluid compression. It is the safest choice for rescuers.

ALL-WEATHER PROOF
A rescue tool must be all-weather proof. The ingenious design and military grade connector with
IP66 value and rating makes these new tools most suited to work in heavy rain showers.

DIRECT FORCE FOR INCREASED PERFORMANCE
Integrated hydraulic rescue tools get force by building up pressure. EDD is direct; it delivers a constant maximum force. The tool’s reaction and response is immediate for great cutting and spreading performance.

Technical data:
P4X Spreader
- Operational weight (incl. PP1): 20.0 kg (±0.2 kg)
- Weight (excl. Battery): 19.0 kg (±0.2 kg)
- Max. spreading opening: 401 mm
- Spreading force at base of blade (last tooth): 89.6 - 3739 kN / 9.1 - 381 ton
- Spreading force at base of jaw: 60.1 - 200.0 kN / 6.1 - 20.4 ton
- Squeezing force 25 mm from tips: 36.3 - 57.7 kN / 3.7 - 5.9 ton
- NFPA HSF: 51.0 kN / 5.2 ton
- NFPA LSF: 32.8 kN / 3.3 ton

OPTION:
P4W Cutter
- Operational weight (incl. PP1): 20.6 kg (±0.2 kg)
- Weight (excl. Battery): 19.6 kg (±0.2 kg)
- Max. cutting opening: 153 mm
- Reach: 118 mm
- Max. cutting force: 543 kN / 55.4 ton

P4FX Combi tool
- Operational weight (incl. PP1): 21.8 kg (±0.2 kg)
- Weight (excl. Battery): 20.8 kg (±0.2 kg)
- Max. cutting opening: 236 mm
- Reach: 96 mm
- Max. cutting force: 321 kN / 32.7 ton
- NFPA HSF: 53.3 kN / 5.4 ton
- NFPA LSF: 38.9 kN / 4.0 ton
