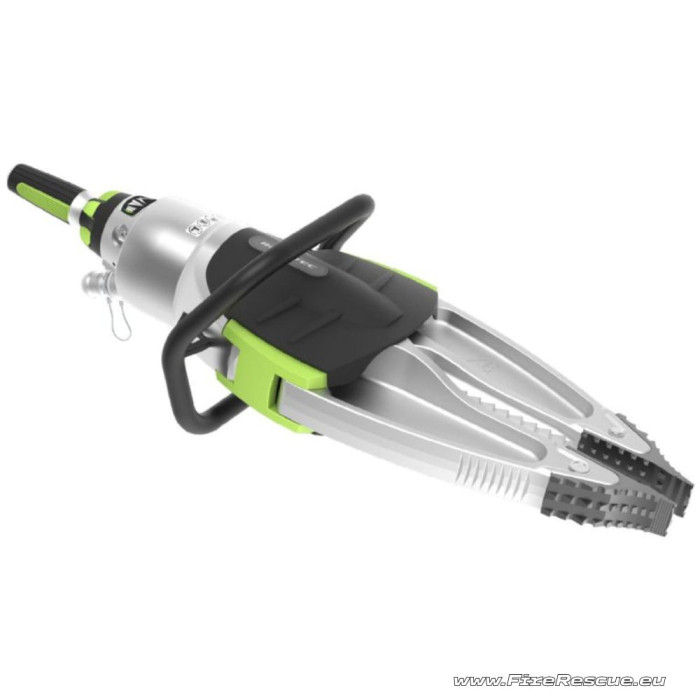

RESQTEC X6 HYDRAULIC SPREADER
RESQTEC RESCUE X-6 SPREADER IS LIGHTWEIGHT, POWERFUL, PRACTICAL.
RESQTEC X-6 rescue spreader has evolved further. All achieved by a total re-design. The jaw is the key to a successful operation. It has to transfer the power of the spreader into a small area. Extensive research resulted in the optimal jaw design.
Call For Price
€0.00
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
RES-47600000RQ
Add to compare0
Add to wishlist
You may also like
LARGER OPENING, SMALLER DESIGN
The maximum opening angle has a large impact on the actual spreading performance. Practice shows that an angle larger than approximately 150° loses its practical spreading capabilities.
OPTIMIZED 350 BAR FOR RESCUE
High tech engineering combined with high grade materials and the physical benefits of 350 bar, make Resqtec hydraulic line tools; lighter, stronger and more reliable than other line tools. This is Optimised 350 Bar.
HIGH PERFORMANCE AND FASTER THROUGH MATERIAL
Force is determined by pressure X area (piston size). A larger piston surface area means less pressure is required to achieve the desired power. Achieving maximum force using Optimised 350 Bar requires less time resulting in faster and more controlled cuts whilst maximising safety.
RELIABLE AND ROBUST
Compression generates heat! The higher the compression force, the more heat is generated, this greatly impacts performance. Optimised 350 Bar reduces compression and in turn increases reliability and performance.
Technical data:
- Operational weight: 24.9 kg
- Max. spreading opening: 802 mm
- Spreading force at base of arm teeth: 109.0 - 2.273.8 kN / 11.1 - 231.9 ton
- Spreading force at base of jaw: 77.7 - 172.0 kN / 7.9 - 17.5 ton
- Spreading force 25 mm from tips: 60.4 - 87.4 kN / 6.2 - 8.9 ton
- Pulling force: 69.3 - 110.6 kN / 7.1 - 11.3 ton
- Squeezing force at base of arm teeth: 173.4 - 245.7 kN / 17.7 - 25.0 ton
- Opening Angle: 130°
- EN 13204: BS60.4 - 802 - 24.9
- NFPA: Compliant
