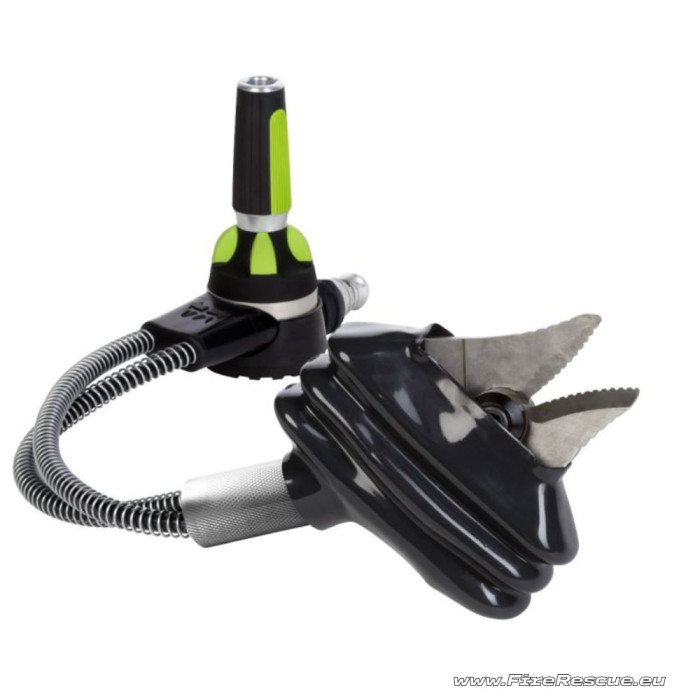

RESQTEC Q1 COMBI HYDRAULIC PEDAL CUTTER

REACH THE MOST NARROW SPACES

180° SWIVELING HEAD
Due to its size, the Q1 cutter can also reach to very narrow spaces to do its job, this enables rescuers to rescue victims with precision and avoid any unfortunate outcomes.

360° SEPARARTED HEAD
Operated by Optimized 350 bar, the separating the control handle enables easier access to confined spaces without losing sight of your control handle.

OPTIMIZED 350 BAR FOR RESCUE
High tech engineering combined with high grade materials and the physical benefits of 350 bar, make Resqtec hydraulic line tools; lighter, stronger and more reliable than other line tools. This is Optimised 350 Bar​.

HIGH PERFORMANCE AND FASTER THROUGH MATERIAL
Force is determined by pressure X area (piston size). A larger piston surface area means less pressure is required to achieve the desired power. Achieving maximum force using Optimised 350 Bar requires less time resulting in faster and more controlled cuts whilst maximising safety. ​

RELIABLE AND ROBUST
Compression generates heat! The higher the compression force, the more heat is generated, this greatly impacts performance. Optimised 350 Bar reduces compression and in turn increases reliability and performance.

Technical data:
- Operational weight (cutter head & remote control): 6,6 kg (4,6 kg + 2,0 kg)
- Max. spreading opening: 83 mm
- Max. spreading force: 40,6 kN / 4,1 ton
- Max. cutting opening: 60 mm
- Max. cutting force: 208 kN / 21,2 ton
- Round bar capability (S235 acc. to EN 13204): 20 mm
- Cutting head: Rotatable 180 degrees
- EN 13204: AC-60B-6.6
- NFPA: Compliant
