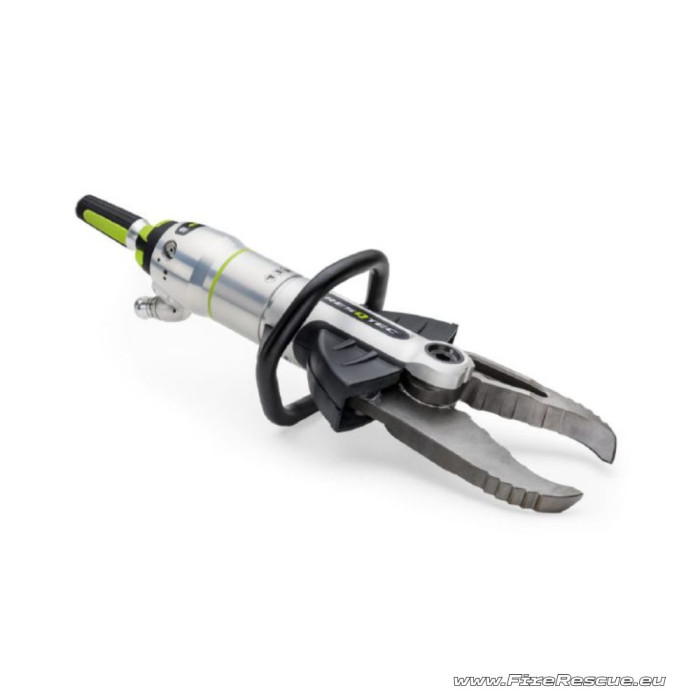

RESQTEC G6A RESCUE CUTTER IS STRONG AND DETERMINED, IN FORCE AND IN PERFORMANCE
Lighter tools, smaller dimensions, refined handling, stronger performance.
Every detail counts. With know-how and the latest technologies in engineering and materials, a new generation of hydraulic rescue cutters has been born.
Call For Price
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
UPGRATED PERFORMANCE G-SERIES CUTTERS
- A-BLADE: All round. Cuts in stages for maximum performance.
- W-BLADE: Wide opening pulls material to the central bolt where the force is largest.
- C-BLADE: Conventional but strong. Combining A- and W-blade.
- G6WFR-BLADE: 30-degree angle W-blades – makes it easier to reach difficult places.
FLAT BOLD DESIGN
The compact size with lower insertion and flat bold design allows for better acces into tight spaces get as close to the center bold for optimum cutting results.
NEO1 TECHNOLOGY
The NEO1 connector underneath and on an angle shortens the tool lenght when conected.
OPTIMIZED 350 BAR FOR RESCUE
High tech engineering combined with high grade materials and the physical benefits of 350 bar, make Resqtec hydraulic line tools; lighter, stronger and more reliable than other line tools. This is Optimised 350 Bar.
HIGH PERFORMANCE AND FASTER THROUGH MATERIAL
Force is determined by pressure X area (piston size). A larger piston surface area means less pressure is required to achieve the desired power. Achieving maximum force using Optimised 350 Bar requires less time resulting in faster and more controlled cuts whilst maximising safety.
RELIABLE AND ROBUST
Compression generates heat! The higher the compression force, the more heat is generated, this greatly impacts performance. Optimised 350 Bar reduces compression and in turn increases reliability and performance.
Technical data:
- Operational weight (incl. PP1): 14.9 kg (±0.2 kg)
- Max. cutting opening: 271 mm
- Max. cutting force: 1,350 kN / 137.7 ton
- Round bar capability (S235 acc. to EN 13204): 40 mm
- EN 13204 classification: CC 212I-14.9
- NFPA 1936 cutting capability: Compliant
