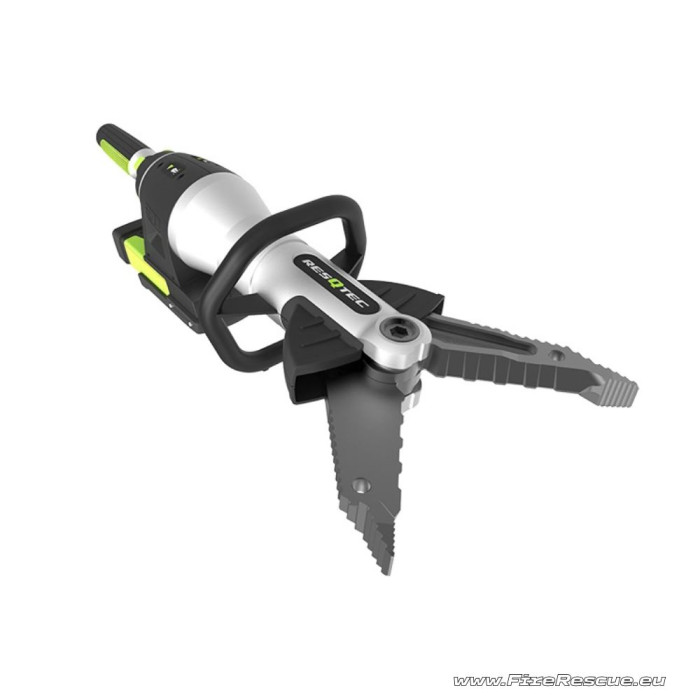

RESQTEC FX4 EDD BATTERY COMBI TOOL

REMOVABLE JAWS TO ALLOW A FULL CUT
Invented by Resqtec over 30 years ago, the ability to detach your jaws from your combination tool allows you to turn your combination tool into a dedicated cutter.

- GRADUAL SLOPE: Easy to get into the gap step-by-step
- DUCK BEAK TIPS: Small inclined tip for control
- INTERLOCKING DESIGN: Gives low insertion height
- BIODIRECTIONAL JAW TIPS: For unmached grip

EDD TECHOLOGY
A new era starts for rescue extrication equipment: Electronic Direct Drive (EDD) Technology direct from the motor to the output force. No need for hydraulic fluids, pump, valves or seals. Simply direct from a compact, powerful and efficient motor to output force. Highly-efficient for a long running time.

NO HYDRAULICS
Problems happen when hydraulic systems overheat. Battery-powered hydraulic rescue tools utilize a captured-fluid system with a small hydraulic reservoir that has very poor cooling capability. The result is rapid heating of the internal fluid and tool components, which can have a serious adverse effect on performance, battery run times, and reliability. EDD is the answer to eliminating this problem.

LONG BATTERY RUN TIMES
EDD is powered by the latest Lithium-Ion technology. The EDD battery conforms to the IEC 62133 safety standards and the UN 38.3 shipping requirements for lithium batteries. The EDD motor technology produces a staggering 1.4kW+ of power, similar to a small gasoline engine currently used in hydraulic pumps. This power is then harnessed by the EDD direct drive mechanical system to provide enormous spreading and cutting forces and extremely long battery run times.

FULL VARIABLE SPEED
Hydraulic systems don’t allow full control over its speed. EDD does; it lets you be in full control of its speed. The control handle works similar to an accelerator; just open it for optimum control.

OPTIMAL SAFETY – NO PRESSURE OR COMPRESSION
EDD contains no hydraulic fluid under pressure nor a pump or seals. A less obvious though important advantage is the lack of compression within the system. Compression of hydraulic fluid creates spring reaction forces. EDD has no such fluid compression. It is the safest choice for rescuers.

ALL-WEATHER PROOF
A rescue tool must be all-weather proof. The ingenious design and military grade connector with
IP66 value and rating makes these new tools most suited to work in heavy rain showers.

DIRECT FORCE FOR INCREASED PERFORMANCE
Integrated hydraulic rescue tools get force by building up pressure. EDD is direct; it delivers a constant maximum force. The tool’s reaction and response is immediate for great cutting and spreading performance.

Technical data:
- Operational weight (incl. PP1): 17.4 kg (±0.2)
- Weight (excl. Battery): 16.4 kg (±0.2)
- Spreading force at base of blade (last tooth): 117 -1.075 kN/ 11.9 -110 ton
- Pulling force (in pulling eyes): 50.6 –59.7 kN / 5.2 –6.1 ton
- Squeezing force 25 mm from tips: 38.8 –43.6 kN/ 4.0 –4.4 ton
- Max. cutting force: 725 kN / 73.9 ton
- IP rating: IP 54
- EN 13204 classification: CK32.5-354H-17.4
- NFPA 1936: Compliant
