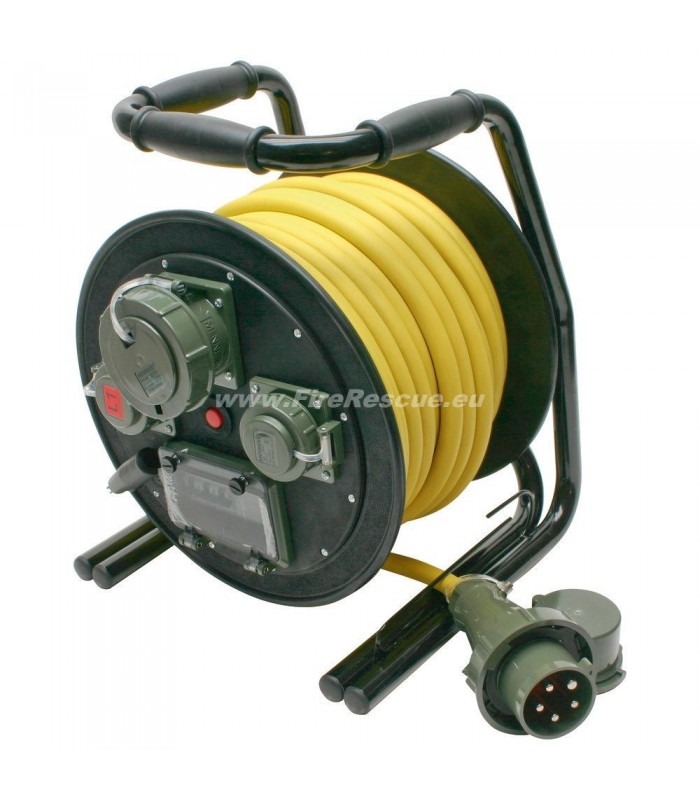

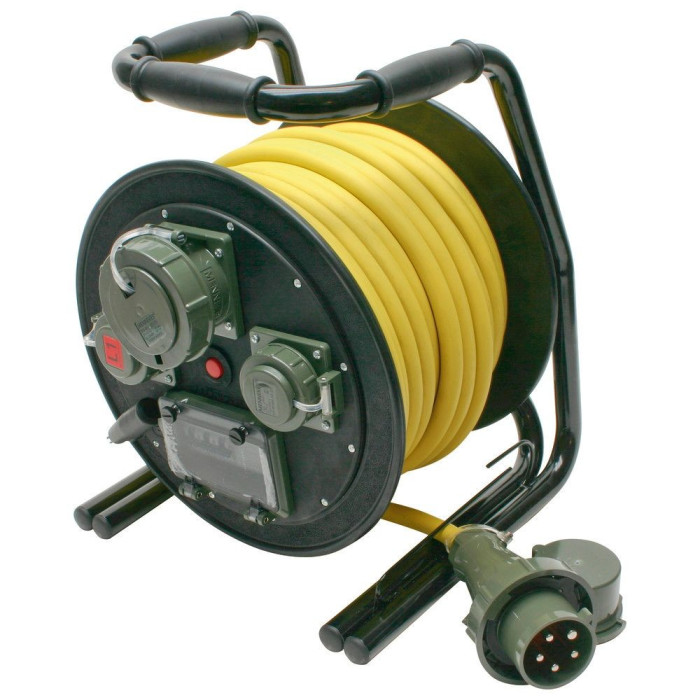

ELECTRIC CABLE REEL THW 400 V, 32 A - 25 m
The Civile protection units places special demands on the cable drums - the frame is double galvanized and double black powder-coated. The cable reels are small and compact and therefore fit into all existing Civile protection vehicle.
€1,215.33
€1,381.05
Reference:
DON-270824
Add to compare0
Add to wishlist
You may also like
TRAFFIC CONES 360 LED SIGNAL LIGHT IN A CASE
€306.19
€332.82
-8%
DONGES FIREFIGHTER BAG
€69.89
DONGES FIREFIGHTER BACKPACK
€73.19
The three insulated, ergonomic handles allow for comfortable carrying by two people. The extremely stable double-tube frame is made of 25 mm diameter steel tubing. The large crank handle folds down.
The cans are secured behind a waterproof protective window.
The drum is available in two versions: L1/L2 and L3/L2. The two safety sockets are wired differently and clearly marked to prevent unbalanced loads on the generator, even in complex power supply network configurations.
Features:
- High carrying comfort thanks to ergonomic handles and a perfectly balanced frame
- Unique cable routing prevents cable tangling
- Special frame design prevents the cable from slipping behind the drum
- Internal, maintenance-free drum brake operated via a star knob
- Pressed-in steel tube axle with excellent smooth-running properties
Technical Data:
- Dimensions W x H x D: 350 x 440 x 380 mm
- Output: 2 x Schuko sockets IP68, each protected by a single-pole 16 A circuit breaker
- Output 2: 1 x CEE 5-pin 32 A IP67 socket
- Load capacity: 32 A
- Input: 1 x CEE 5-pin 32 A IP67 plug
- Weight: 27,000g
- Cable length: 25 m
- Management: H07RN-F5G6
- Protection class: IP54
- THW Part number: 6150T31127
- Type: L1/L2
