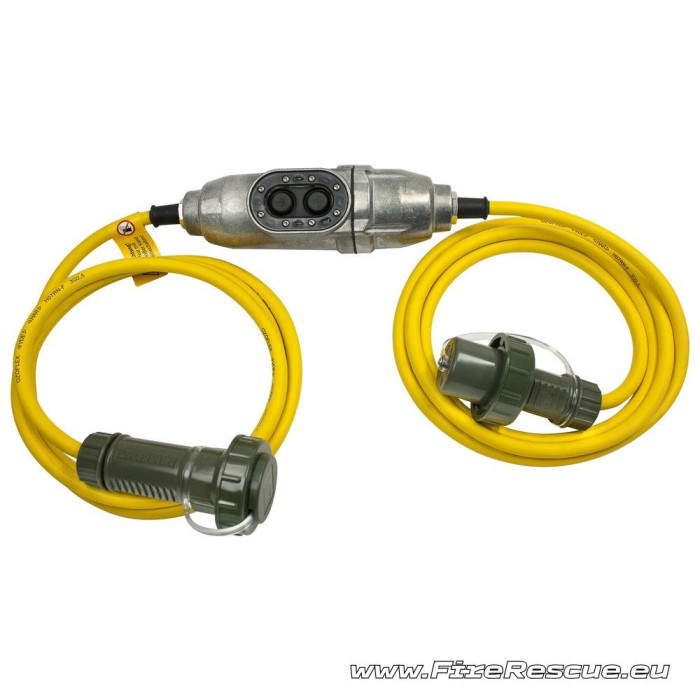

PERSONAL PROTECTION CABLE PRCD-S 16A, 30 mA, IP68
The PRCD-S is a circuit-breaking portable residual current protection device with electronic fault current evaluation (PRCD = Portable Residual Current Device; S = safety) in the form of an intermediate cord device. It is particularly suitable as a safety distributor for all portable electrical equipment.
€691.87
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
DON-270899
Add to compare0
Add to wishlist
You may also like
The PRCD-S is a circuit-breaking portable residual current protection device with electronic fault current evaluation (PRCD = Portable Residual Current Device; S = safety) in the form of an intermediate cord device. It is particularly suitable as a safety distributor for all portable electrical equipment.
The PRCD-S detects the interference voltage on the protective conductor. However, the PRCD-S does not interrupt the protective conductor connection. The interference voltage can therefore isolate itself via its own upstream FI and LS protection devices.
Equipped with 2 m (1.5 m upstream of switch and 0.5 m downstream of switch) of sulphur yellow extremely flexible special rubber cable H07RN-F3G2.5 in acc. with DIN VDE 0282.
Features:
- Residual current protection device
- Undervoltage tripping
- Protective conductor detection
- Protective conductor monitoring
- Interference voltage detection
- Protection in the event of interference voltageon the protective conductor
Technical specifications:
- Model PRCD-S
- Output: 1 x Schuko IP68 coupling
- Load capacity: 16 A
- Rated differential current: 30 mA
- Input: 1 x Schuko IP68 plug
- Weight: 1,800 g
- Length: 4.5 m
- Management: H07RN-F3G2.5
- Voltage: 230V
- Protection class PRCD: IP68
