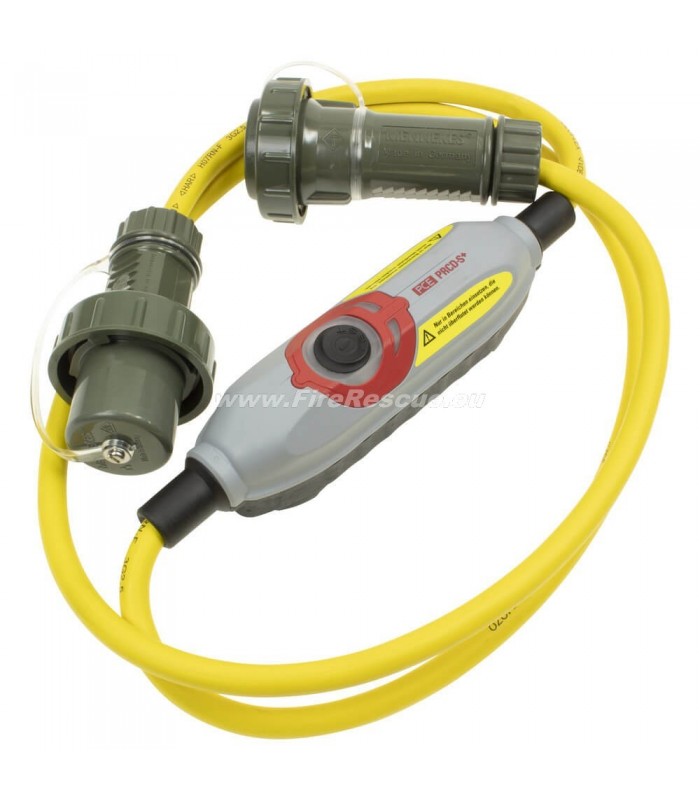

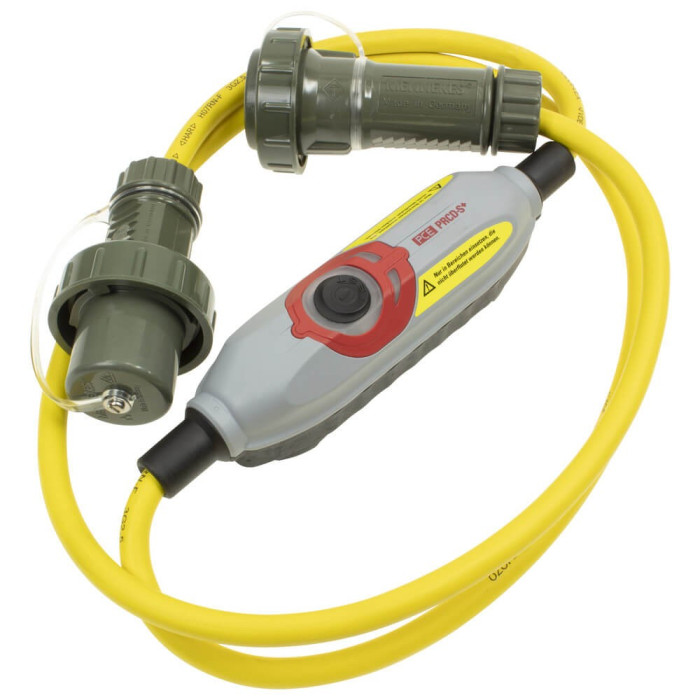

PERSONAL PROTECTION LINE PRCD-S THW-VERSION IP55 - 3 m
The PRCD-S is a circuit-breaking portable residual current protection device with electronic fault current evaluation (PRCD = Portable Residual Current Device; S = safety) in the form of an intermediate cord device. It is particularly suitable as a safety distributor for all portable electrical equipment.
€375.46
Reference:
DON-270896
Add to compare0
Add to wishlist
You may also like
The PRCD-S is a circuit-breaking portable residual current protection device with electronic fault current evaluation (PRCD = Portable Residual Current Device; S = safety) in the form of an intermediate cord device. It is particularly suitable as a safety distributor for all portable electrical equipment.
The PRCD-S detects the interference voltage on the protective conductor. However, the PRCD-S does not interrupt the protective conductor connection. The interference voltage can therefore isolate itself via its own upstream FI and LS protection devices.
Equipped with 2 m (1.5 m upstream of switch and 0.5 m downstream of switch) of sulphur yellow extremely flexible special rubber cable H07RN-F3G2.5 in acc. with DIN VDE 0282.
Features:
- Residual current protection device
- Undervoltage tripping
- Protective conductor detection
- Protective conductor monitoring
- Interference voltage detection
- Protection in the event of interference voltageon the protective conductor
Technical specifications:
- Input: 1 x Schuko IP68 plug
- Output: 1 x Schuko IP68 coupling
- Voltage: 230 V.
- load capacity: 16 A.
- Rated residual current: 30 mA
- Cabel: H07RN-F3G2.5
