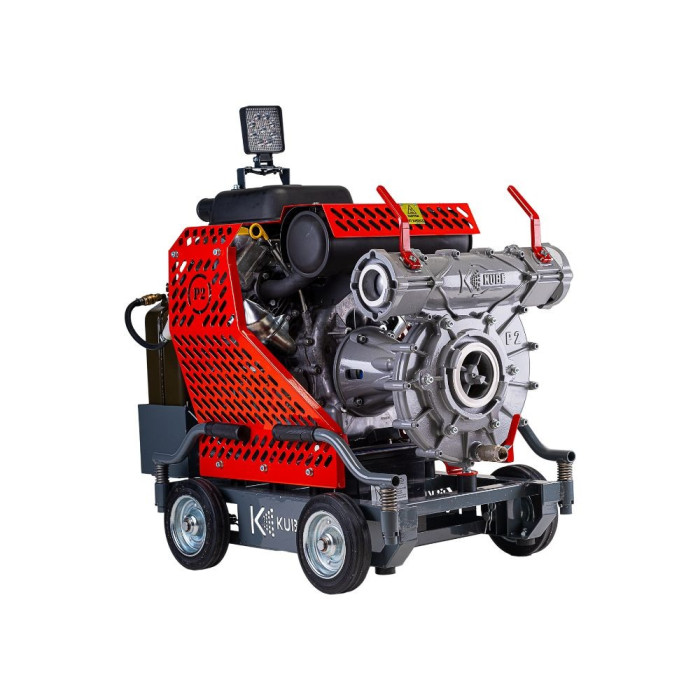

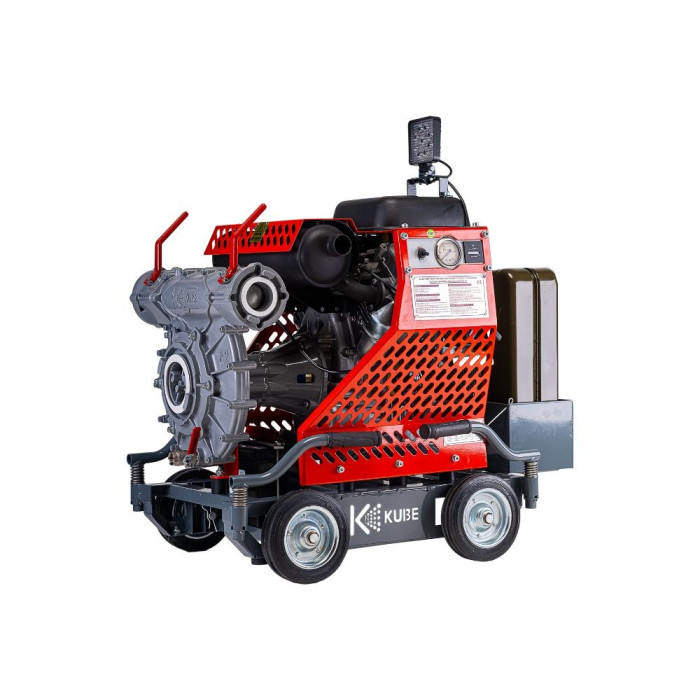

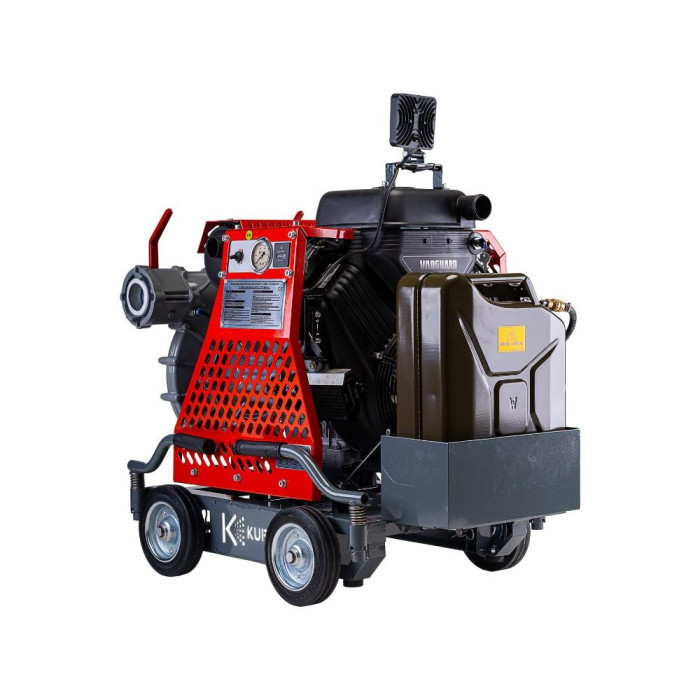

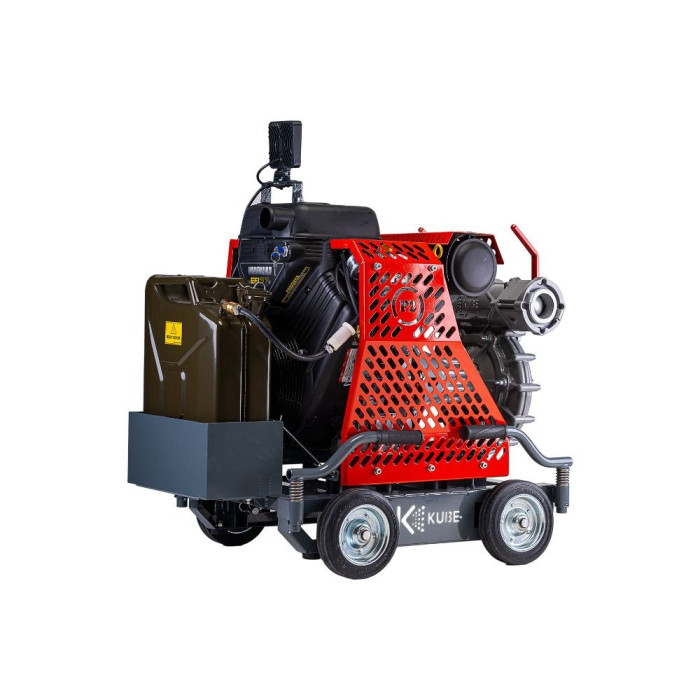

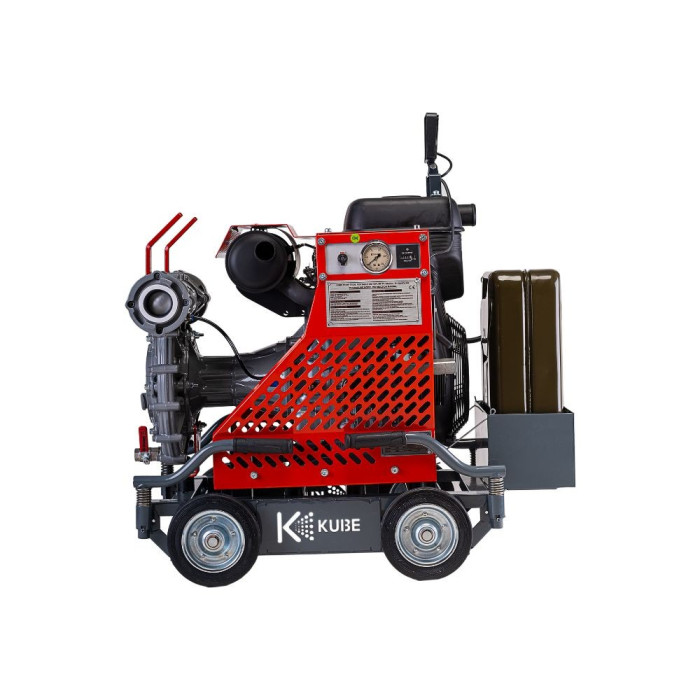

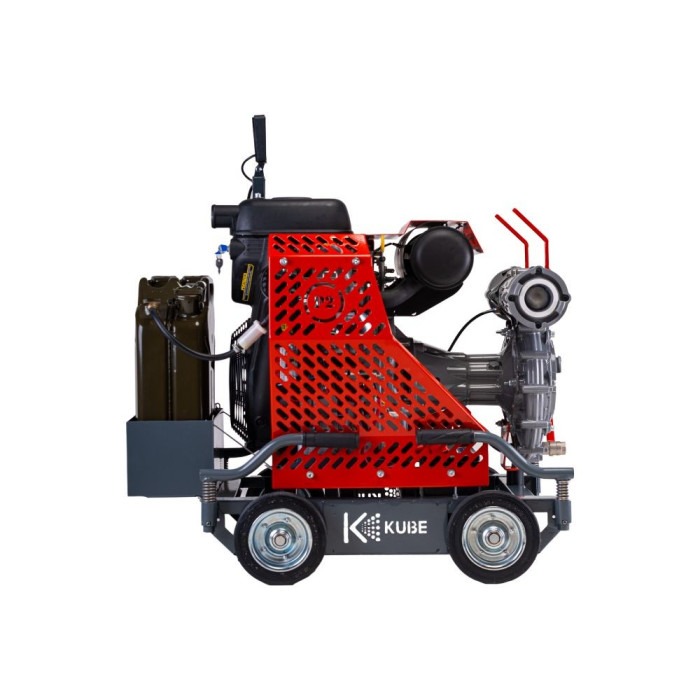

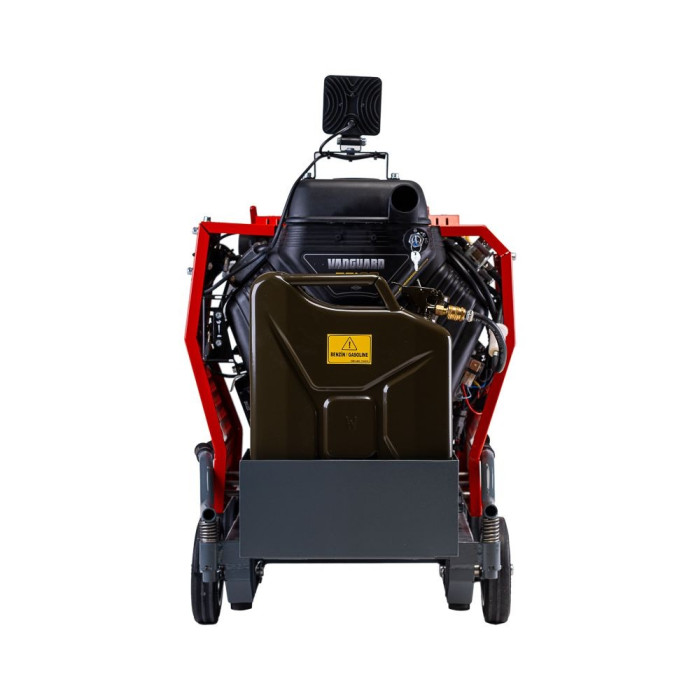

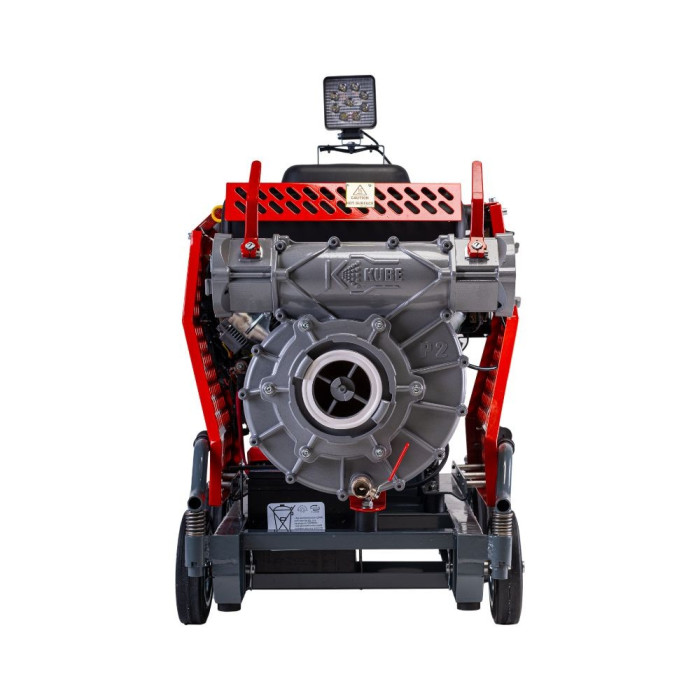

KUBE FIREFIGHTING PUMP P2 GASOLINE

Features:
- In addition to firefighting in buildings and forest firefighting scenarios, KUBE pumps can be used to pump heavily polluted water, flood water, oily water, sewage and even seawater.
- Unique protection systems of the KUBE pump and the type of construction prevent even larger impurities from damaging the pump and the motor.
- The operating principle of the KUBE pump is not based on vacuum. A propeller mounted on a flexible shaft pushes the water up to 10 meters to the pump. With these features, it differs from other known pumps in terms of performance and efficiency.
- Since the KUBE pump does not require a mechanical seal, dry running will not cause damage to the pump or motor.
- KUBE products are built for use in the toughest conditions on site. Despite the lightness of the devices, no compromises are made on the solid construction. The devices are suitable for many years of use under the toughest conditions.
- KUBE pump systems are among the lightest systems in their performance class on the market. This is achieved by the special design features of the pump.
- Every minute counts at the scene of an emergency. Equipment that optimally supports a successful operation must therefore be ready for use quickly. The concentration should be on the operation and the operation tactics and not on setting up the equipment. KUBE pumps are built in such a way that anyone can use them quickly at the scene of operation, even without explanation.
- Set it down, start the KUBE pump and pay full attention to the job site. The operability of the equipment must not be a mystery. Electronic “gimmicks” are of little use, because the concentration should be on the operation and the operation tactics, not on operating the equipment. Even without technical training, the equipment must be easy to operate.
- KUBE water pumps and motor pumps are designed for low operating costs. On the one hand, the units offer very high mechanical quality combined with very long service life even in tough applications. Spare parts availability and corresponding warranty plans further reduce operating costs.

Technical data:
- Engine type: 4 cycle
- Number od engine cylinder: 2 cylinders
- Cooling system: air cooled
- Engine bore x stroke: 86,00 x 79,00 mm
- Piston displacement: 993 cc
- Engine output: 27,6 Kw – 37 HP / 29,8 kW - 40 HP
- Fuel type: Gasoline
- Fuel capacity: 20 lit
- Fuel consumption: 8 L/H (full stroke)
- Fuel system: direct fuel injection
- Oil tank capacity: 2,3 Liter
- Starting: electric
- Pump suction sistem: mechanic patented suction system
- Pump type: single stage centrifugal
- Pump suction type and dia: Storz A-110 - 4”
- Pump discharge type and dia: Storz B-75 – 2,5” (OPTIONAL 2,5” BS, GOST, NH)
- Pump discharge number: twin outlet
- Pump discharge valve: ball valve
- Pump bearing oil capacity: 150 ml
- Dry weight: 105 kg
- Operation weight: 135 kg
- Overall dimensions(mm): 600 x 850 x 750 mm

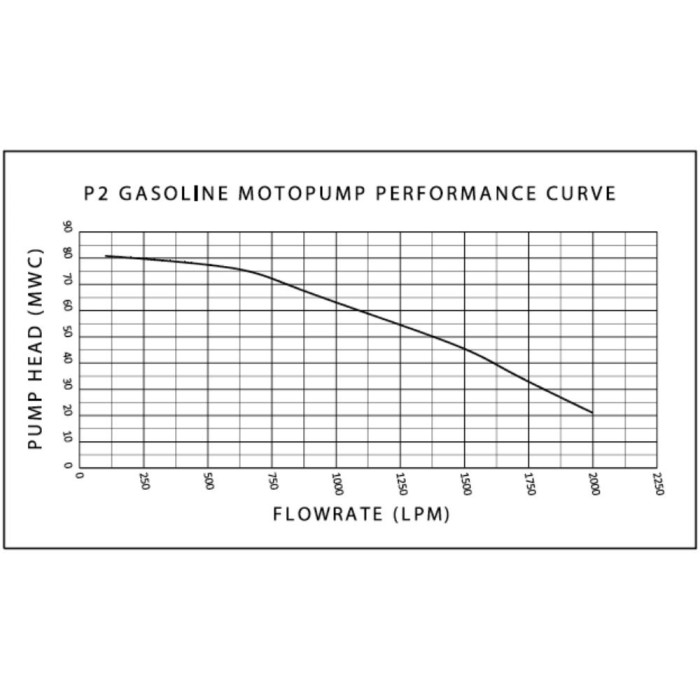

- Performance At Suction Height 6m:
  *2000 lit/min @ 2 bar
  *1600 lit/min @ 4 bar
  *1300 lit/min @ 5 bar
  *800 lit/min @ 7 bar
  *500 lit/min @ 8 bar
