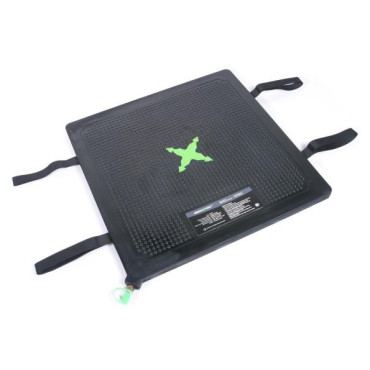

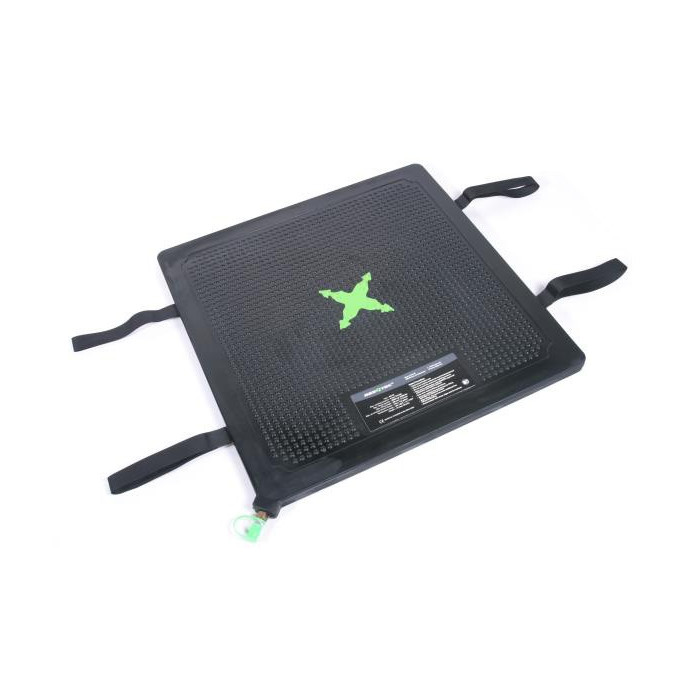

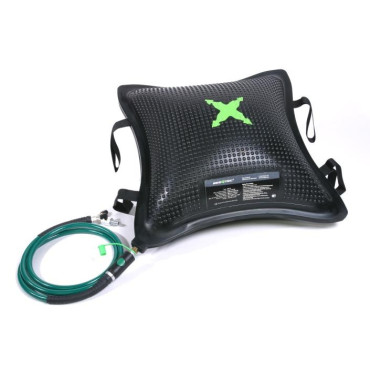

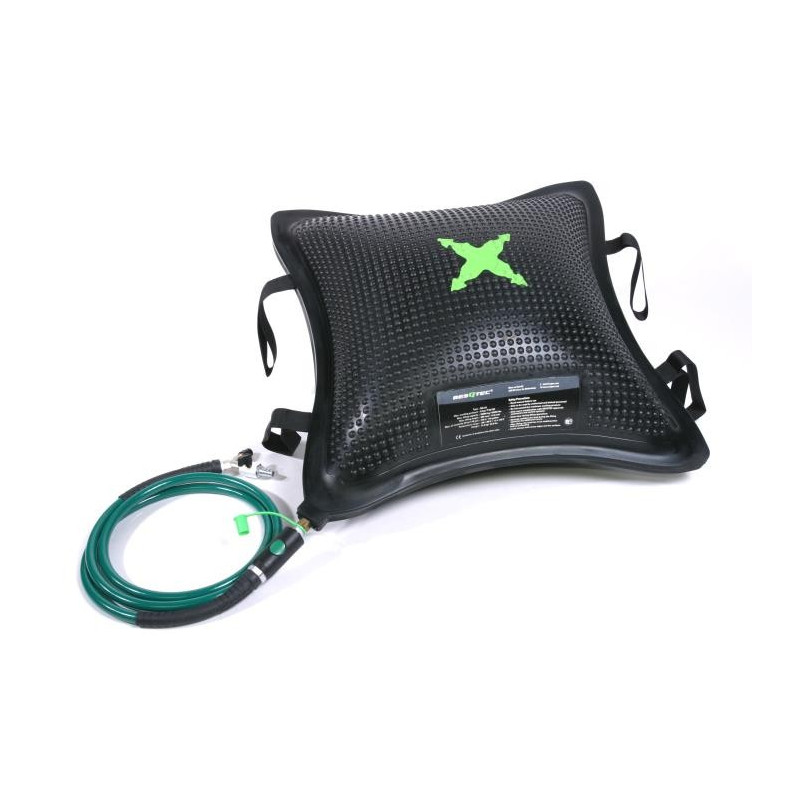

RESQTEC LIFTING BAG HP SQ20 (75x37,5)

The RESQTEC SQ lifting bags are used to move loads, rescue at vehicles or aircraft accidents, and other similar situations due to their special construction.

More details

RES-8100.0121
New product

841,80 €

- +

Add to compare


More info

Resqtec’s SQ Bag is capable of large stroke and effective lifting height, it is the lightest in the industry and highest power to weight ratio, and embedded Load Capacity Ehancer (LCE) and Stability Center turns limitation of lifting bags into strengths and ease of use. All the advantages lead to being easy to use in whatever scenario you may face.

They are suitable for lifting heavy loads. Since their maximum force acts on a very small surface, the cushions are ideal for lifting rigid objects in confined spaces. Due to their special construction, they are used for moving loads, solving heavy goods vehicles or aircraft, and in other similar situations. They are made of rubber, for greater resistance to oils, fuels and chemicals.

There are fifteen sizes of lifting pads, both square and rectangular, with a capacity from 1 to 70.4 tons.


Data sheet
Dimensions75 x 37.5 cm
Volume270 liter
Weight6,5 kg
Thickness25 mm
Height inflated23 cm
Working pressure8 bar
Test pressure12 bar
Burst pressure32 bar
Max. Load20.2 ton
