RESQTEC NT2 HYBRID LIFTING BAG
RESQTEC NT2 Hybrid high Performance Lifting Bag.
For nearly 30 years, the RESQTEC NT Hybrid Lifting bags have proved their high performance and reliability in unlimited situations and environments. The design of the NT Hybrid is the driving force behind unmatched features and capabilities.
Call For Price
€0.00
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
RES-85080002
Add to compare0
Add to wishlist
You may also like
RESQTEC NT Hybrid Lifting bags have proved their high performance and reliability in unlimited situations and environments. The design of the NT Hybrid is the driving force behind unmatched features and capabilities.
The oval shape forces the bag to stay flat throughout the lift. Its embedded Load Capacity Core (LCC) and Stability Center turns the limitations of lifting bags into strengths and ease of use.

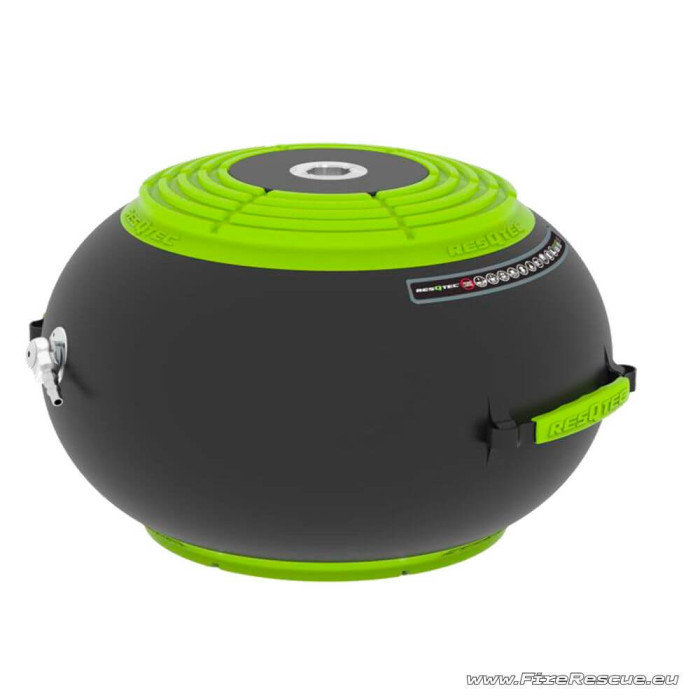

OVAL SHAPE
Maximum capacity, height, and stability throughout the whole lift; more surface area than any other shape, more stability due to flat bottom and top.
STABILITY CENTER
For stability, a bag needs to follow the object (not fight against it). The Stability Center (metal core with threaded connectors) positioned in the center, ensures that the bags follow the arc movement. Result: Higher lift with more stability.
ARC MOWEMENT
For stability bags need to follow the object (not fight against it)
STRONGER THAN STEEL
Made from 3D woven Aramid fibres - The multiple layers of materials are 6 times stronger than steel!
METAL CAPACITY CORE
If only 10% of the surface area is used, the Load Capacity Core still delivers 100% lifting capacity. It prevents capacity loss or the incapability of lifting from smaller objects, such as the axle of a truck or l-beams.
CONENECTABLE

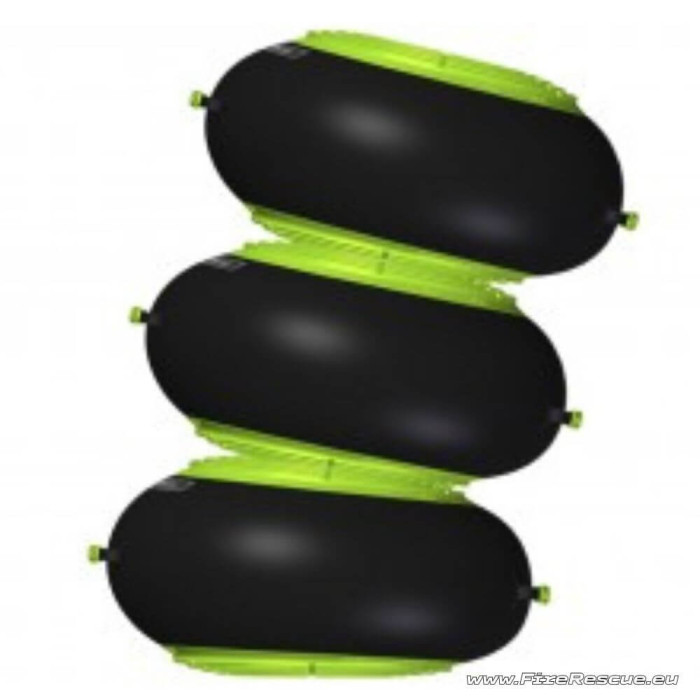

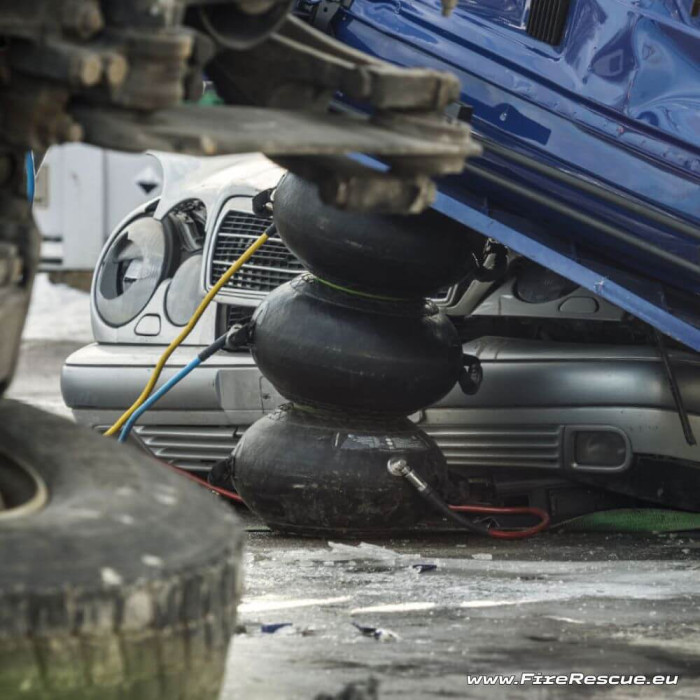

Use single, together or stack up to 3 bags. With the NT Hybrid you can easily fill gaps by connecting 2 or 3 NT Hybrid bags or by connecting the optional PowerPlate and use interlocking cribbing blocks.
POINTED LOADS
Continue where others have to stop. Lift pointed loads without loss of capacity or need for cribbing.
2 IN 1 SYSTEM
The NT Hybrid brings the height of low pressure and the capacity of high pressure bags into one system. This makes it a 2-in1 all-round rescue bag that can be used in any rescue situation.
Technical data:
- Model: NT2 HYBRID
- Weight: 6.5 kg
- Max. lifting capacity: 26 ton
- Max. lifting capacity at max. lifting height: 6.2 ton
- Insertion height: 10 mm / 34 mm
- Max. lifting height: N x 275 mm
- Diameter: 520 mm
- Working pressure: 12 bar
- Safety factor: 4
