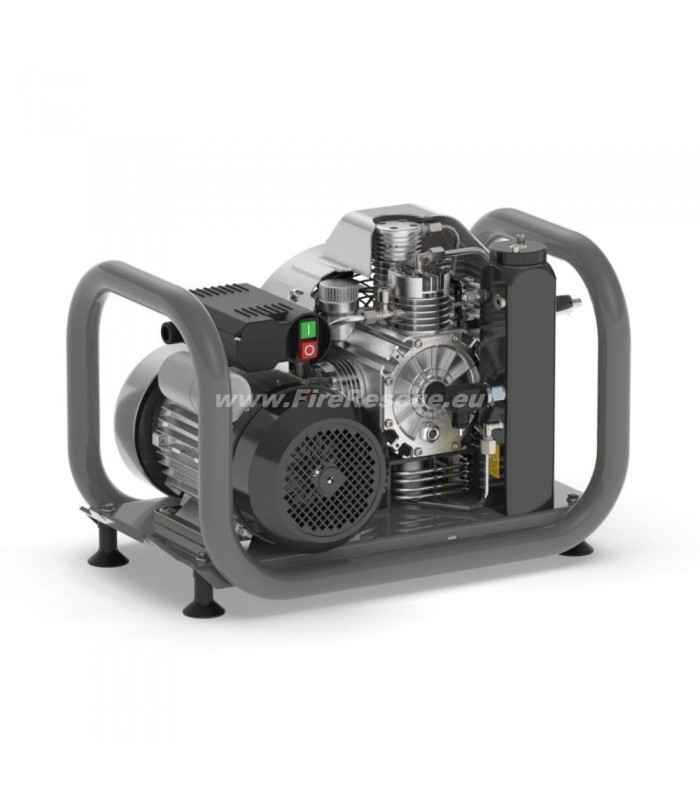

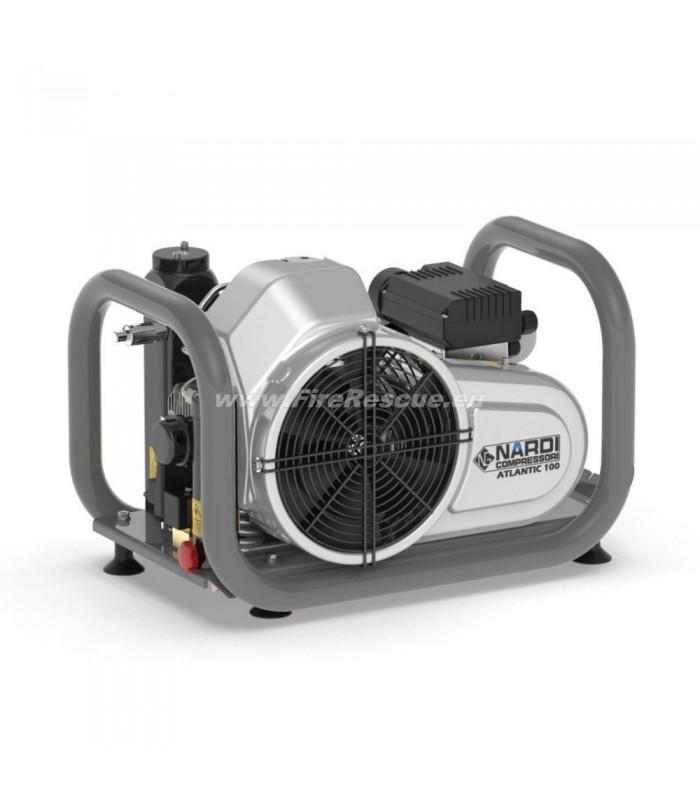

NARDI ATLANTIC P 100 HIGH-PRESSURE COMPRESSOR

The Nardi Atlantic high-pressure compressor is characterized by its small size and high capacity. The most compact line of high-pressure compressors for breathing air. Its low weight makes it easy to transport and allows filling even in very hard-to-reach places.

The air quality is always very high, thanks to the little tricks that only Nardi Compressori can design.

Features:
- Standard pressure valve on each model
- Coated aluminum frame
- Interphase condensate separator designed to reduce condensation between one phase and the other in a well-ventilated position to maintain low temperatures
- Fully balanced crankshaft
- Pressure 225 or 330 bar or double pressure
- High quality materials resistant to thermal and dynamic stresses
- Air conveyor designed for efficient heat exchange
- Steel valves for longer life and greater capacity
- Filter cartridge with the right size for air quality always at the top
- Noise and vibration levels at the lowest level with excellent pumping unit level
- Reliable electric motors designed and manufactured by Nardi Compressori, specific to each type of compressor model
- Separator
- In accordance to DIN EN 12021 and PED.

Technical data:
- Motor: 230 V
- Flow: 100 l/min
- Speed: 2,100 rpm
- Power: 2.2 kW
- Weight: 42.5 kg
- Dimensions: 58 x 41 x 41 cm

Accessories:
- DIN / INT-YOKE reduction connection only for 225 bar/3200 psi with DIN connection
- Filling hose holder
- Additional hose connections (for a maximum of 2 hose connections: 225 bar/3200 or 330 bar/4700 psi)
- Dual pressure with safety valve (2 hose connections: No. 1 225 bar/3200 psi and No. 1 330 bar/4700 psi)
- Dual pressure with pressure reducer (2 hose connections: No. 1 225 bar/3200 psi and No. 1 330 bar/4700 psi)
- End pressure switch with automatic shut-off
- Trolley (2 wheels and handle)
- Foldable trolley (2 wheels and tilting handle)
- Automatic condensate drain
- Double cleaning system
- Environmentally friendly condensate collection container/tank 5 liters

Scope of delivery:
- Compressor, 1 pce
- Filling connection with valve, 1 pce
