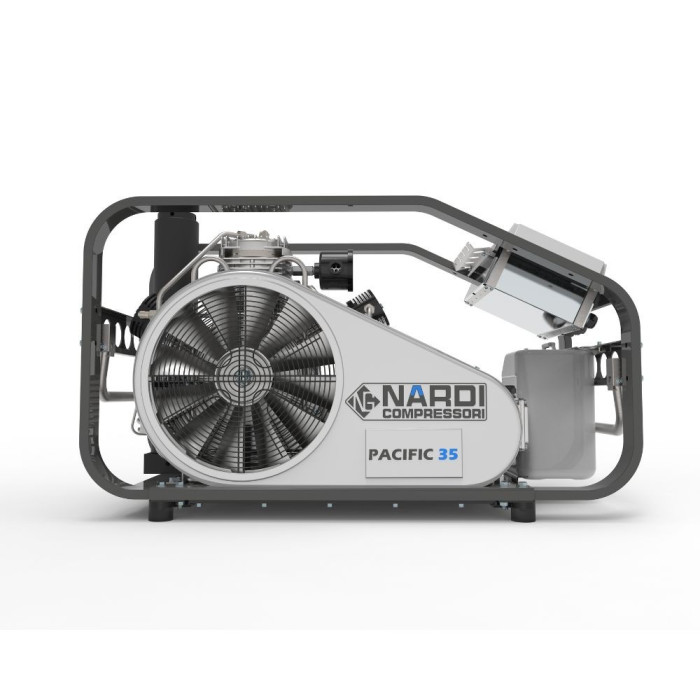

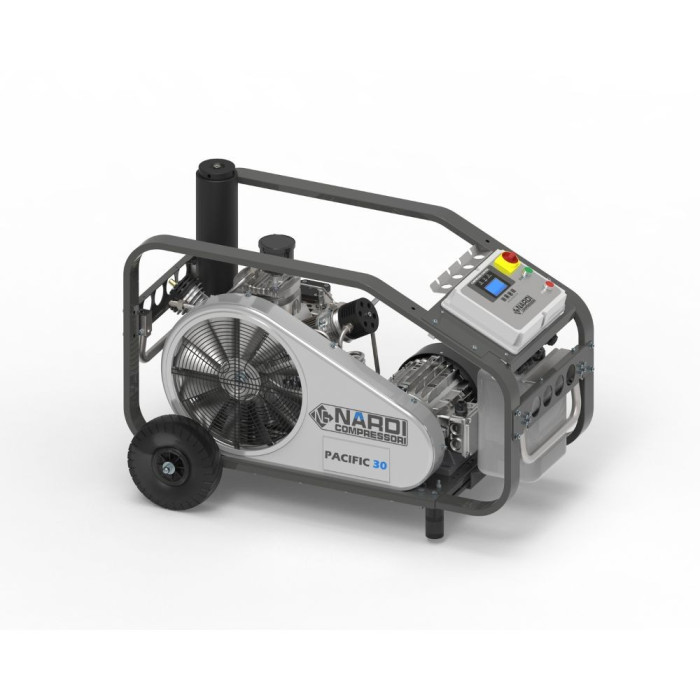

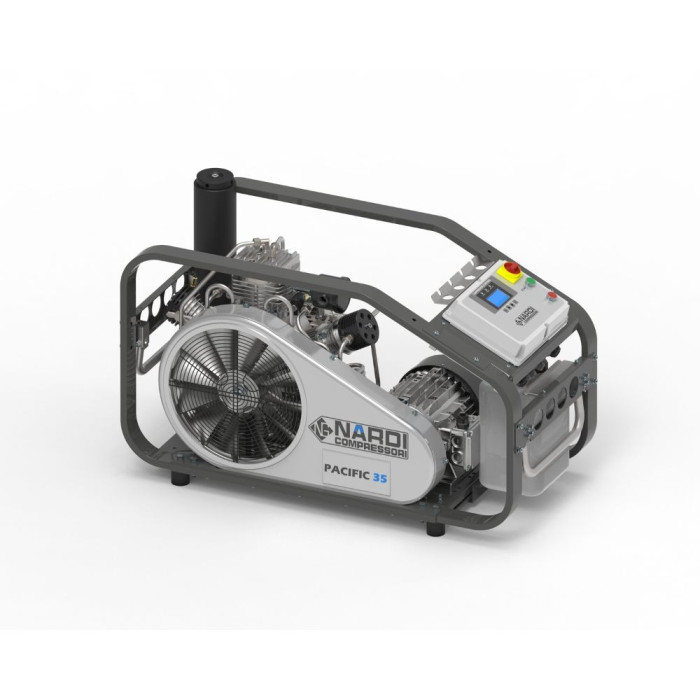

NARDI PACIFIC P HIGH-PRESSURE COMPRESSOR

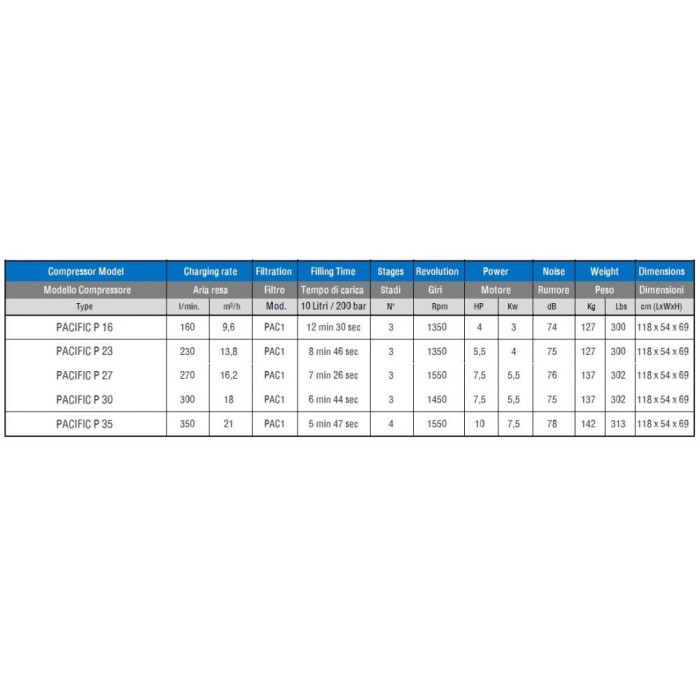

BREATHING AIR is a product line that includes several products made by NARDI COMPRESSORI which are designed to provide breathable air for the filling of cylinders for different applications (i.e.: scuba diving, safe & rescue, military, etc.). PACIFIC is a group of compressors of different capacities that have a very high efficiency and are mechanically very robust to ensure many hours of operation. PACIFIC P are compressors within the PACIFIC group that have free air delivery rates from 160 liters per minute to 350 liters per minute.

These are robust compressors, designed in detail to ensure maximum safety and a long service life.

Quality of compressor blocks:
- The compressor block or pumping unit is the heart of PACIFIC compressors and is a key component to which NARDI has paid great attention. It has characteristics that make it unique in the world. Among them is the use of light alloys with high thermal efficiency, such as aluminum.
- The pumping unit is not coated with paint in order to improve the heat dissipation of its elements with low corrosion resistance.
- The crankshaft bearings have rollers that are extremely robust and manufactured in Europe, ensuring a long service life of the compressor.
- The oil pump ensures constant lubrication of the internal workings of the block with oil, which is cleaned by a filter and a magnet of impurities that trap any metals present in the lubricating oil.
- Cooling of the compressed air is achieved by interstage cooling coils made of stainless steel.

Frame efficiency:
- The frame is designed to reduce weight and dimensions, making the compressor light and portable, with an aluminum frame coated with epoxy powder paint and stainless steel components.
- It is equipped with a double anti-vibration anti-frame that eliminates vibrations on the ground.
- The paint coating and stainless steel components ensure protection against corrosion even in marine environments.

Controls and electronics:

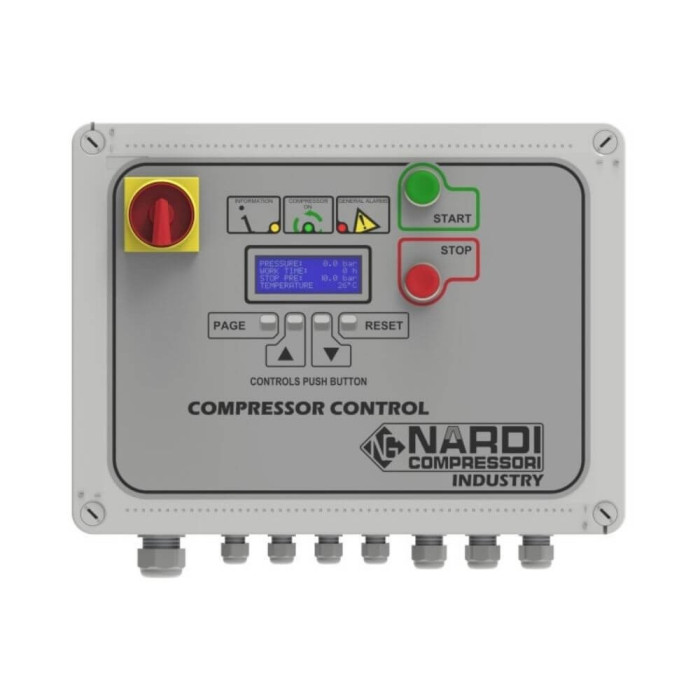

- For the correct operation of the amplifier, NARDI has designed a new electronic control panel. This new system controls all the main characteristics such as temperature, oil level, current consumption, inlet pressure, outlet pressure, and monitors all sensors, valves and solenoid valves.
- In addition, the electronic control panel monitors the service schedule and monitors the status of the filtration system.

Filtration system cleanliness:
- The compressor is equipped with various filters and separators: two separators are located on the compressor block, and one final PAC filter on the frame is mainly intended for breathing air.
- The compressor is equipped with a single large filter, ensuring long operating hours and breathable air, in accordance with the UNI EN 12021:2014 standard.

Economy:
- Everything in the compressor is designed to optimize both operating and labor costs.
- Compressor servicing, in addition to being quite cheap, is scheduled at longer intervals.
- When the compressor is running, NARDI has designed an automatic compressor condensate drain to optimize costs, equipped with a unique patented SLOW FLOW SYSTEM that reduces the amount of gas discharged by 80%, saving on the pressure of the entire system.

Additional equipment:
- Automatic System for Electric models (Elect. Control Panel and Automatic Condensate Drain)
- Soft Start (available for PACIFIC P with charging rate 230 lpm, 270 lpm, 300 lpm and 350 lpm)
- Low Oil Alert
- Additional Pressure Sensors
- Additional Temperature Sensors
- Hour Meter for electrical with manual controls
- Filtering System (PAC Filter 2)
- Filtering System (PAC Filter 3) Upgrade from PAC Filter 1
- Filtering System (PAC Filter 3) Upgrade from PAC Filter 2

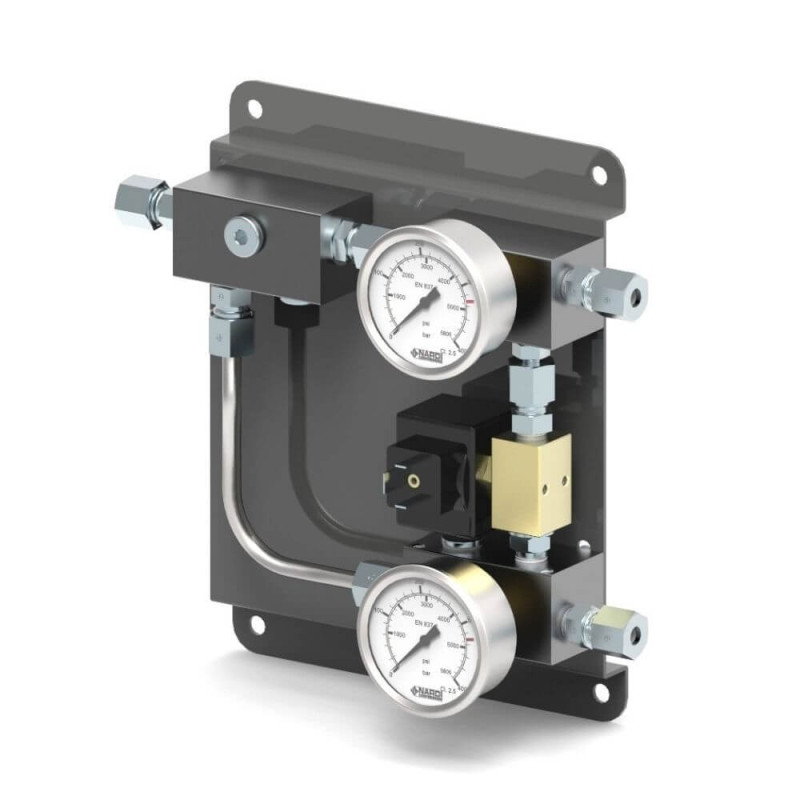

- Double pressure (Pressure reducer with 2 ea. Filling devices 2-fold with 2 connections at 225bar/3200psiand 2 connections at 330bar/4700psi – Standard version supplied with 1 filling hose DIN 200 bar and 1 filling hose DIN 300 bar)
- Additional hose connections (for a maximum of 2 hose connections : 225bar/3200 or 330bar/4700psi)
- Reduction connection DIN / INT-YOKE only for 225 bar/3200psi with connection DIN (each piece)

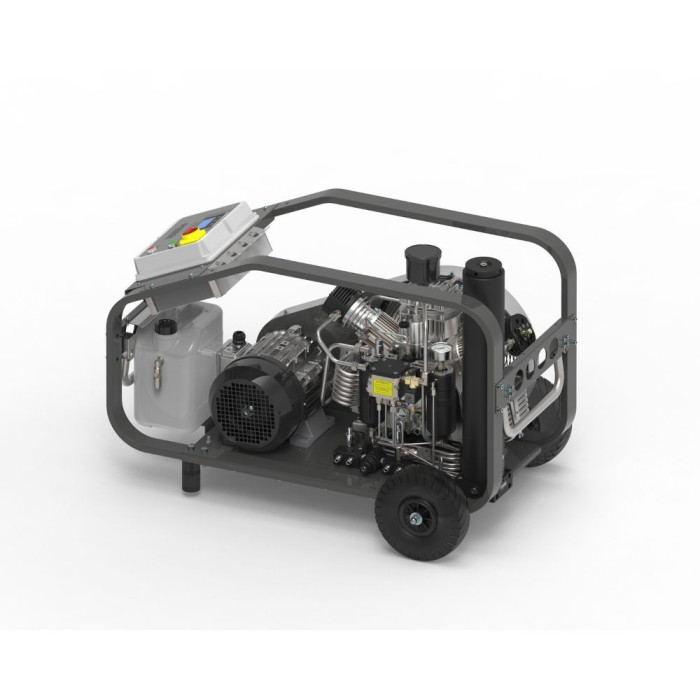

- Trolley (2 wheels and handle)
- Handles (Set of 2)
- Eco-Friendly Condensate Collecting Container/Tank 12 l.
- Large separators

Special equipment:

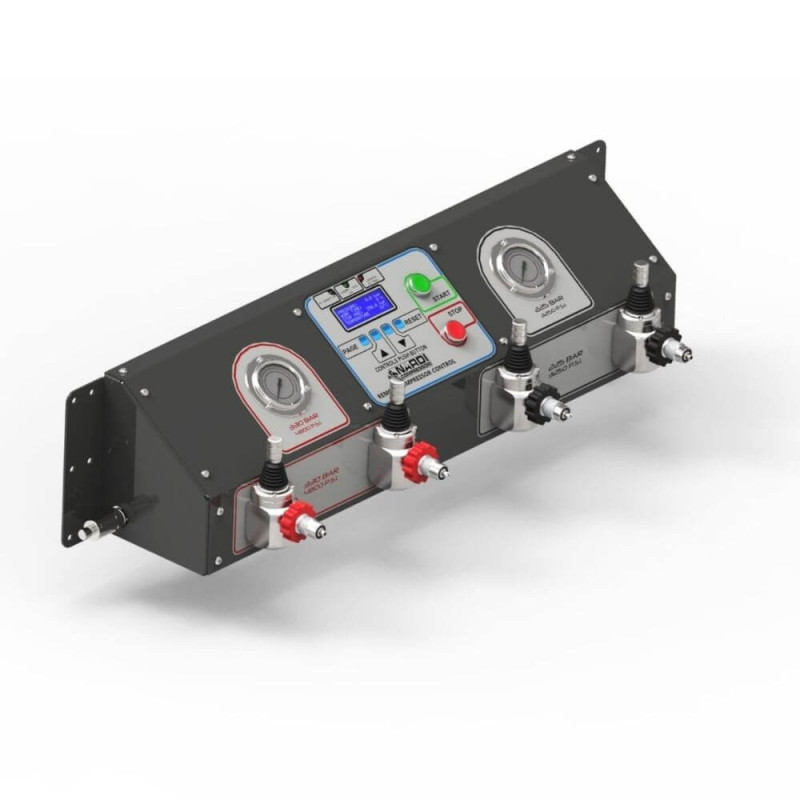

- Filling ramp
- Air bank
- By pass

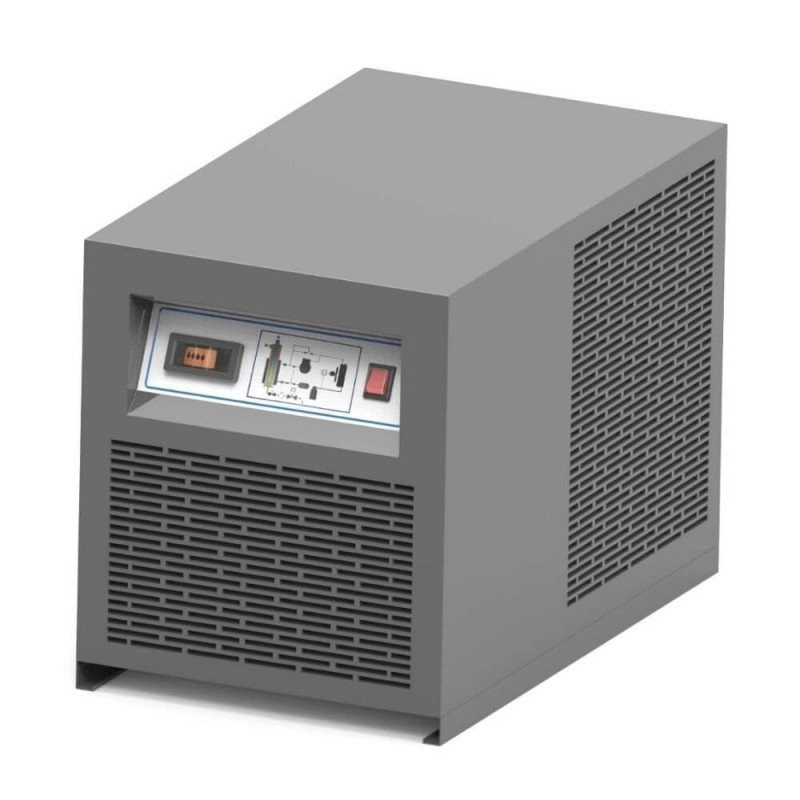

- Air cooler
- Antibacterial filter

Scope of delivery:
- Compressor, 1 pce
- Outlets for filling hose, 4 pce
- Filling hose, 2 pce
- PAC 1 filter system
