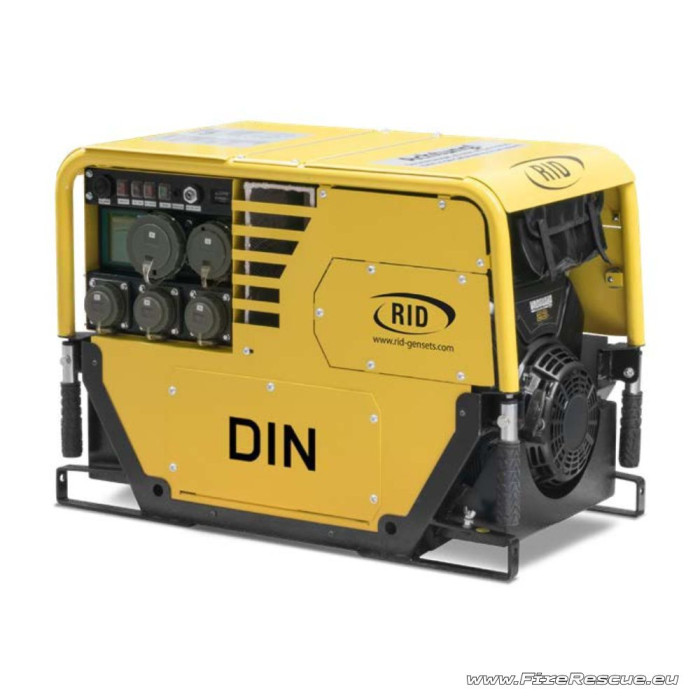

RID RV 13540 ERN DIN GENERATOR
RID DIN electro generators for accident protection, reliable and constant supply of electricity in the most demanding conditions, when we need it most.
With power from 2.7 kVA to 13.4 kVA, also available in different colors.
Call For Price
€0.00
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
RID-717084
Add to compare0
Add to wishlist
RID DIN electro generators for accident protection, reliable and constant supply of electricity in the most demanding conditions, when we need it most. With power from 2.7 kVA to 13.4 kVA, also available in different colors.
Technical data:
- Generator type: synchronous
- Nom. output 3~ (cos Φ= 0,8): 13,0
- Nom. output 1~ kVA: 7,0
- Voltage (1~) / (3~) V: 230 / 400
- Nom. current (1~) / (3~) A: 30,4 / 18,8
- Frequency Hz: 50
- Protection Class: IP54
- Engine type: B & S Vanguard 386447
- Cylinder: 2
- Rotational-speed range rpm: 3000
- Type of fuel: Gasoline 92 / 95
- Oil: SAE 15W-40
- Oil volume in engine l: 1,7
- Engine output kW: 13,5
- Cooling: Air
- Tank capacity l: 14,5
- Hand starter (H) / electr. starter (E): H / E
- Fuel consumption load 100% l/h: 6,7
- Weight kg: 135
- Dimensions (L x W x H) mm: 820 x 440 x 580
- Noise level dB(A): 72
Standard equipment:
- Insulation monitoring
- 3-way fuel valve for external refueling
- Multifunctional display with power display
- Voltage display of the individual phases
- Load of the individual phases
- Total load of the unit
- Operating hour counter
- Fuel level indicator
- Frequency display
- Protective conductor test device
- Automatic oil shortage shutdown
- Generator overload protection
- Starter battery 12V / 18A
- Foldable carrying handles
- On-board tool kit
- DIN 14685 - 1/2
Options:
- Remote start device
- NATO socket VG96917
- Charging socket DIN 14690
- Charging socket MagCode
- Insulation monitoring - switch-off
- Transport trolley
- Exhaust hose, 90° adapter
- Color red RAL 3000
- Special colors possible
- IT/TN switching
