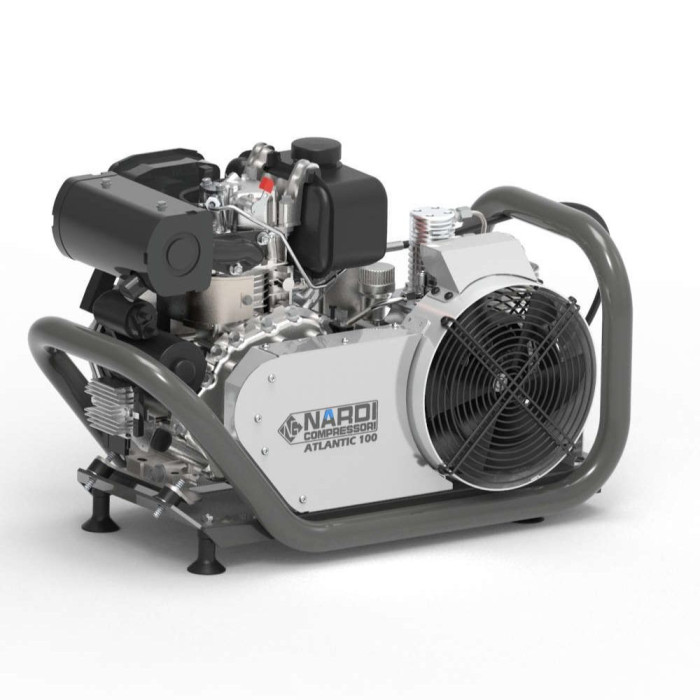

NARDI ATLANTIC D 100 DIESEL HIGH-PRESSURE COMPRESSOR

The Nardi Atlantic high-pressure compressor is characterized by its small size and high performance. The most compact line of high-pressure compressors for breathing air. Its low weight makes it easy to transport and allows charging even in very difficult to access areas.

The air quality is always very high, thanks to the little tricks that only Nardi Compressori can design.

Features:
- Standard pressure valve on each model
- Coated aluminum frame
- Interphase condensate separator designed to reduce condensation between one phase and the other in a well-ventilated position to maintain low temperatures
- Fully balanced crankshaft
- Pressure 225 or 330 bar or double pressure
- High quality materials resistant to thermal and dynamic stresses
- Air conveyor designed for efficient heat exchange
- Steel valves for longer life and greater capacity
- Filter cartridge with appropriate size for air quality always at the top
- Noise and vibration levels at the lowest level with excellent pumping unit level
- Reliable electric motors designed and manufactured by Nardi Compressori, specific to each type of compressor model
- Separator
- Complies with DIN EN 12021 and PED directives

Technical data:
- Engine: diesel
- Flow: 100 lit/min
- Revolutions: 2,100 rpm
- Power: 3.5 kW
- Weight: 61 kg
- Dimensions: 82 x 37 x 50 cm

Additional equipment:
- Additional filling connection (max. 2 connections)
- Double working pressure (1 x 220 + 1 x 330)
- Double filtration system
- Switch with automatic shut-off when the pressure tank is full
- Trolley
- Operating hour meter
- Automatic condensate drainage

Scope of delivery:
- compressor, 1 pc
- filling connection with valve, 1 pc
