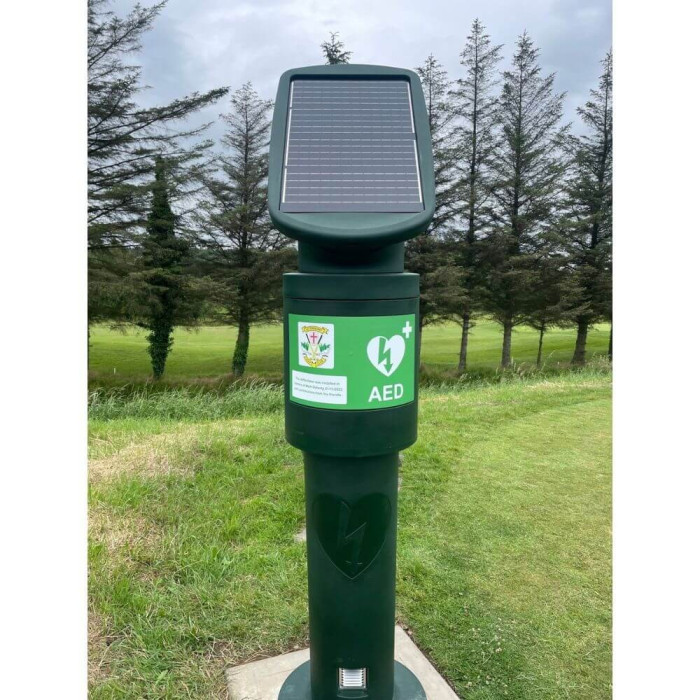

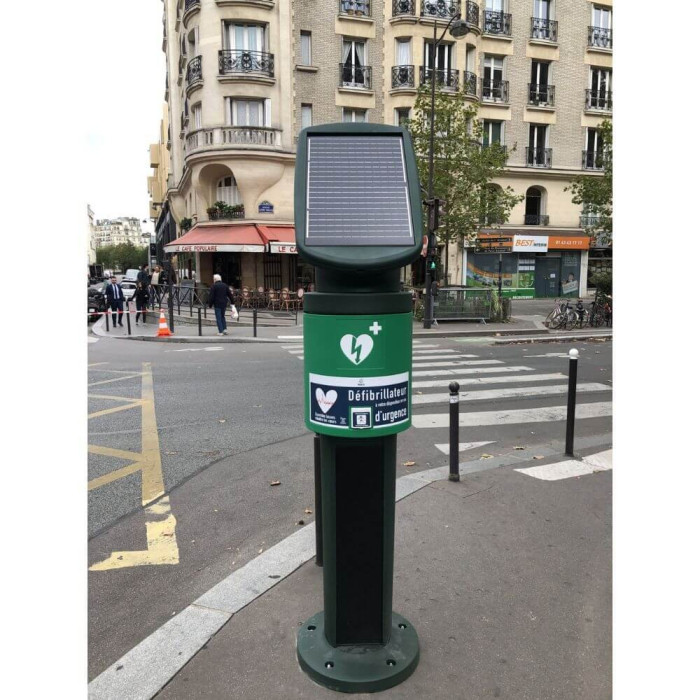

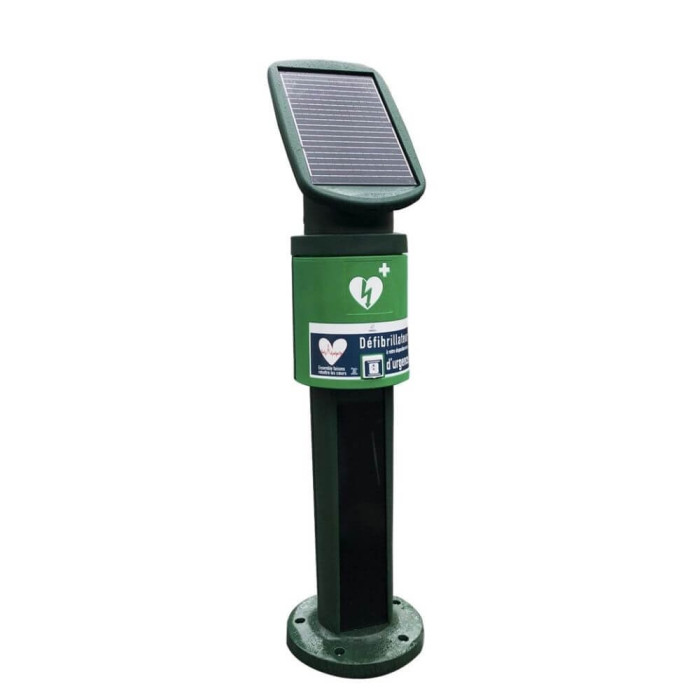

AIVIA SOLO STANDALONE AED DOCKING STATION

The Aivia SOLO docking station is fully energy self-sufficient and uses a patented technological innovation. AIVIA SOLO monitors and protects the AED while maintaining the medical device within the manufacturers recommended operable temperature range.

Permanently connected to an IoT network, the AIVIA SOLO sends data and allows remote monitoring of accesses, standby status, defibrillator removal and temperature readings.

ECO-TECHNOLOGY
- Use of recyclable materials (PE, PU and PCM)
- Energy stored in the patented PCM (phase change materials)

EASY INSTALLATION
- Fixed to the ground by 5 anchoring points at a depth of less than 10cm
- No electrical connection required
- IoT communication function provided without hard-wired connections
- No need for a soil study, no need for urban planning permission
- An anchor block is not mandatory (except on soft ground or on slopes greater than 5° C).
- Several colours available
- Customised visual instructions on all sides

EASY AED ACCESS
- The opening and access to the AED are independant from the solar system orientation (Photovoltaic and Trombe Wall)
- Door height and access is compliant with disability standards

AED MONITORING
- Remote AED status monitoring (Presence, operability)
- Environmental monitoring (external and internal temperatures)
- Operational monitoring (door opening and/or closure, AED removal, etc.)
- Monitoring functions accessible from any web browser.

CONNECTIVITY
- Via IoT networks (Sigfox, NB-IoT)
- SMS / email messaging alerts on ‘EMERGENCY OPENING’ and status.
- Hosted and secure cloud server
- HTTPS connection and SSL encryption

CONFIGURATION AND MAINTENANCE TOOL
- Configuration can be modified from the server
- An online diagnostics capability and interpretation by error code
- Details of malfunctions and automatic routing of incidents (Emails/SMS wordings, recipients…)
- Record keeping of maintenance for each AED unit
- Instructs as to preventative action needing to be taken. (keeping users informed of any expiration of pads and batteries, serial numbers...)

A SOFTWARE MONITORING APPLICATION
- A multilingual version is available, requiring a username and password for access to the server
- Incidents are displayed with the possibility of verifying and logging facts
- One or several AIVIA SOLO can be monitored at any one time (status display and presence of the AED, control system, alarm...)
- AIVIANET can be programmed to send SMS/ Email alerts to one or more people should an incident occur
- Record keeping of past incidents
- Data interpretation by way of colour codes
- Geolocation of any AIVIA SOLO connected to the network
