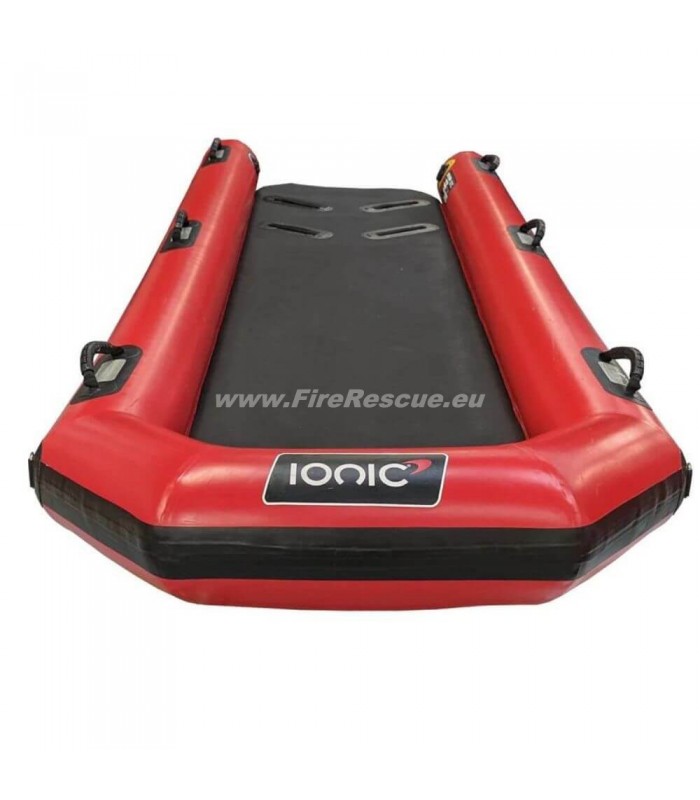

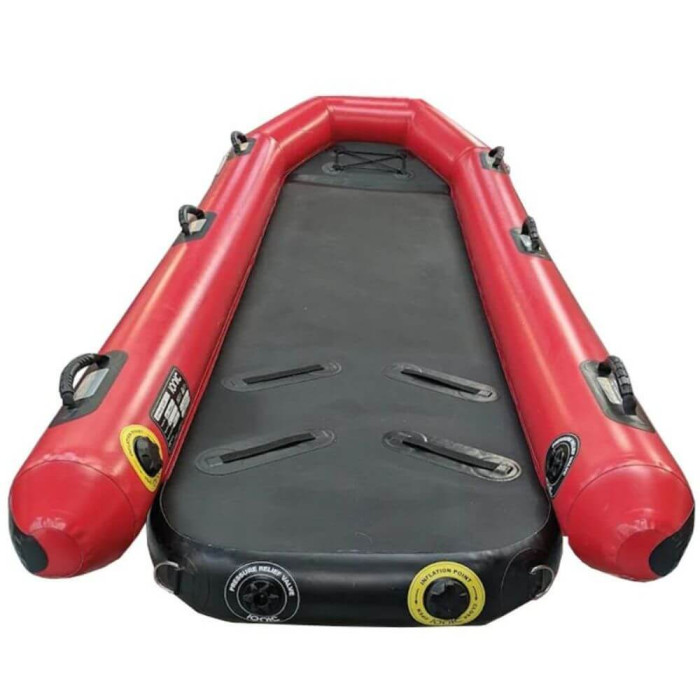

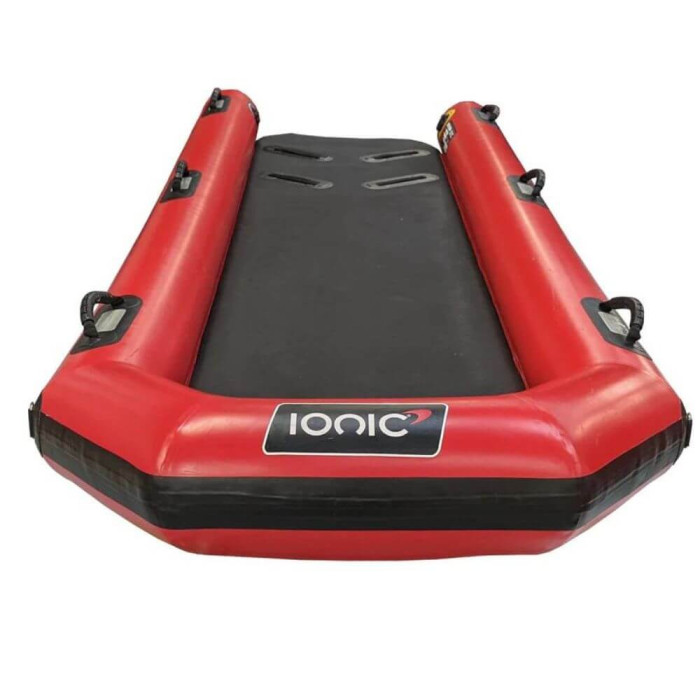

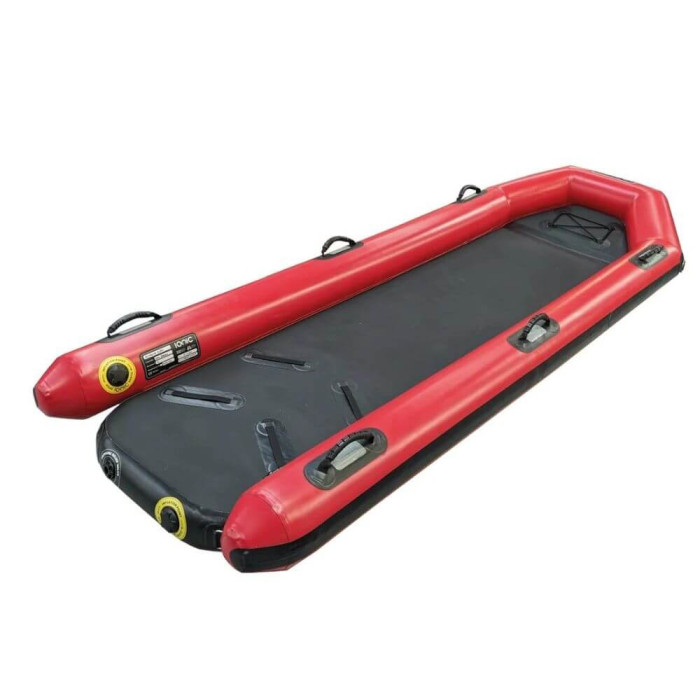

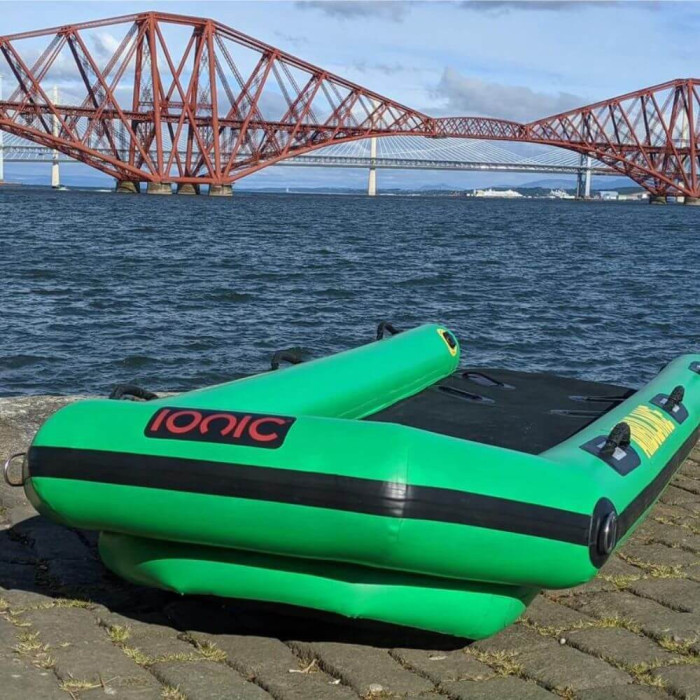

IONIC EXTREME RESCUE SLED

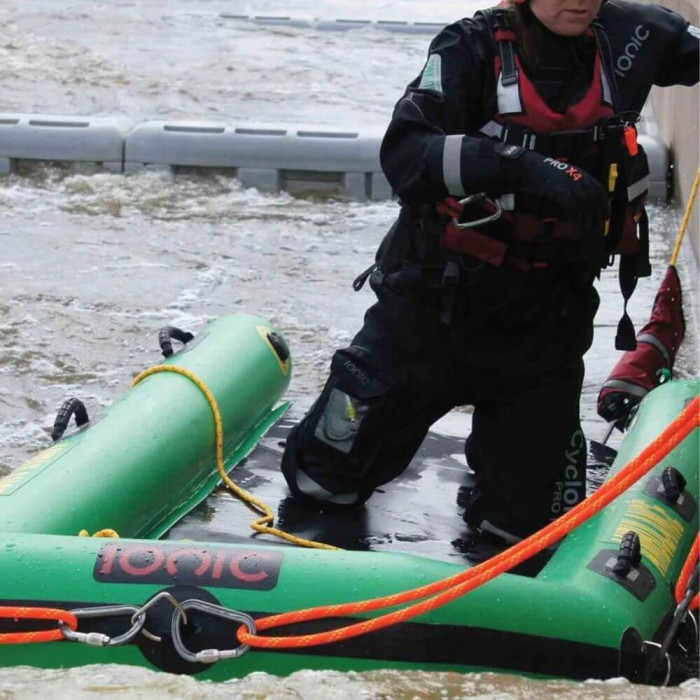

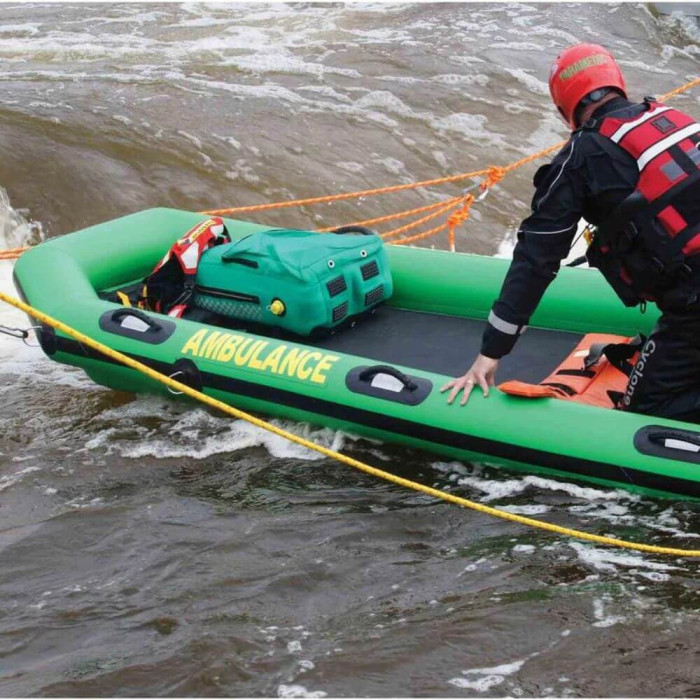

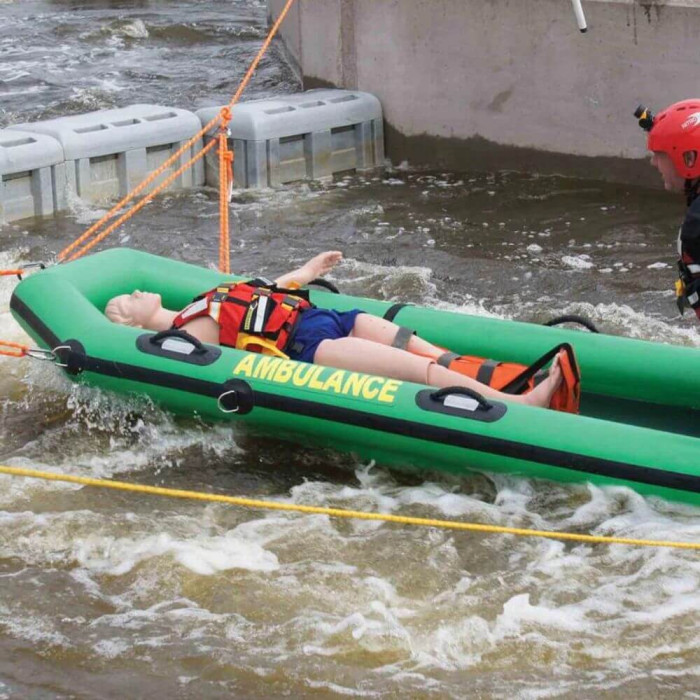

The IONIC Extreme Sled is the original sled that set the standard for rescue applications. At 3 m in length it provides 400 kg of useable buoyancy, but remains both compact and easy to deploy and manoeuvre. This versatile sled provides a stable working platform for various types of rescue applications in water, ice and mud/soft ground rescue. It is easy to paddle, or can be towed, and is fitted with 5 tethering points as standard together with 2 flip tabs located under the deck.

Manufactured in Orca® Hypalon the Extreme delivers unrivalled durability compared to PVC constructed models. It boasts an Orca® 6” Drop Thread Deck which inflates to 0,4 bar providing a more stable platform to work from compared to alternative models with a 4” version. The deck is also over-layed with a double coated Hypalon skin providing a non-slip safe platform to work from.

The Extreme Sled is rated for inflation using a compressed air cylinder fitted with the IONIC Compact Inflation Kit which is recommended for rapid inflation and quick deployment.

Load Capacity:
- Maximum number of persons 4
- Maximum payload 400 kg

Craft Dimensions:
- Overall Length 3, 2 m
- Overall Width 1,2 m
- Inside Length 3,0 m
- Inside Width 0,7 m

Inflation:
- Number of chambers in Sponsons 1
- Inflatable high pressure deck 1
- Total Airtight chambers 2
- Sponson working pressure 0,2 bar
- Deck working pressure 0,4 bar

Towing/Tethering Points:
- Bow D-Ring Patches 3
- Stern D-Ring Patches 2

Sponsons & Deck:
- 150 mm (6”) High pressure deck
- 200 mm (8") Hypalon® Sponsons
- Sponsons consist of 1 air tight chambers

Valves:
- Rapid inflation points on Sponsons & Deck
- PRV’s fitted to Sponsons & Deck

Fabric:
- Sponsons - ORCA Hypalon®
- Deck - ORCA Hypalon® double skin drop thread

Packed Dimensions / Weight:
- 80 (l) x 70 (w) x 35 (h) cm
- Packed weight 23 kg
