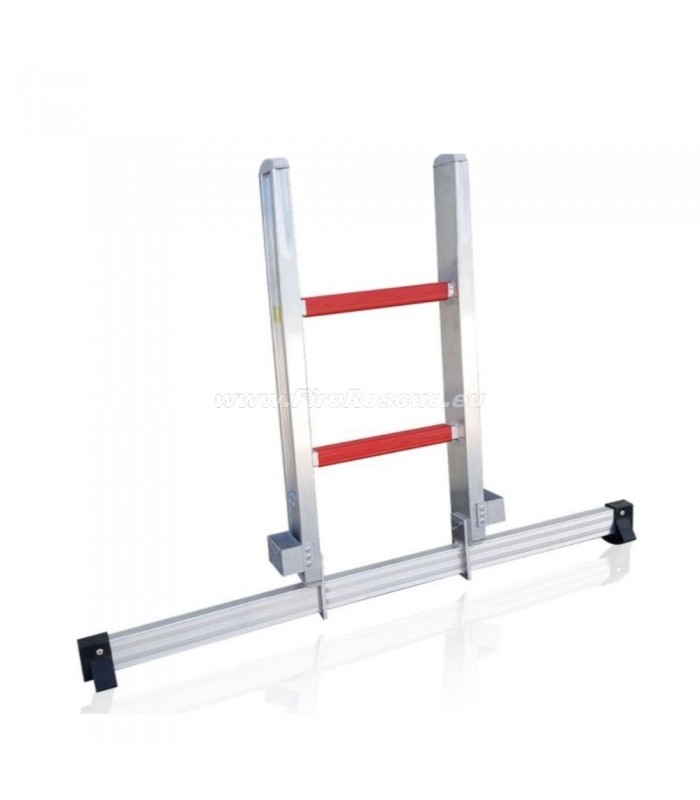

JUST SCALING LADDER EN 1147 - ATTACHMENT MODULE 2-RUNGED WITH STABILISER BAR

Made from high quality alloyed aluminium, the square-profile rungs are welded into the milled beams, ensuring a secure hold. Our ladders also use an intuitive locking mechanism which makes connecting and disconnecting the ladder parts extremely simple and timely.

To correspond with the new DIN addition, all ladders are equipped with insulated and anti-slip plastic rung covers.

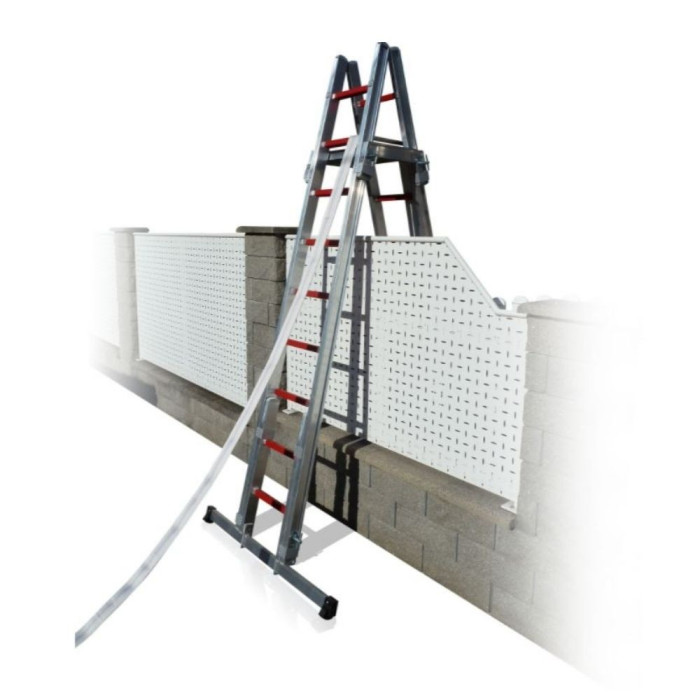

Scaling ladders in use as a hose bridge

Various Applications

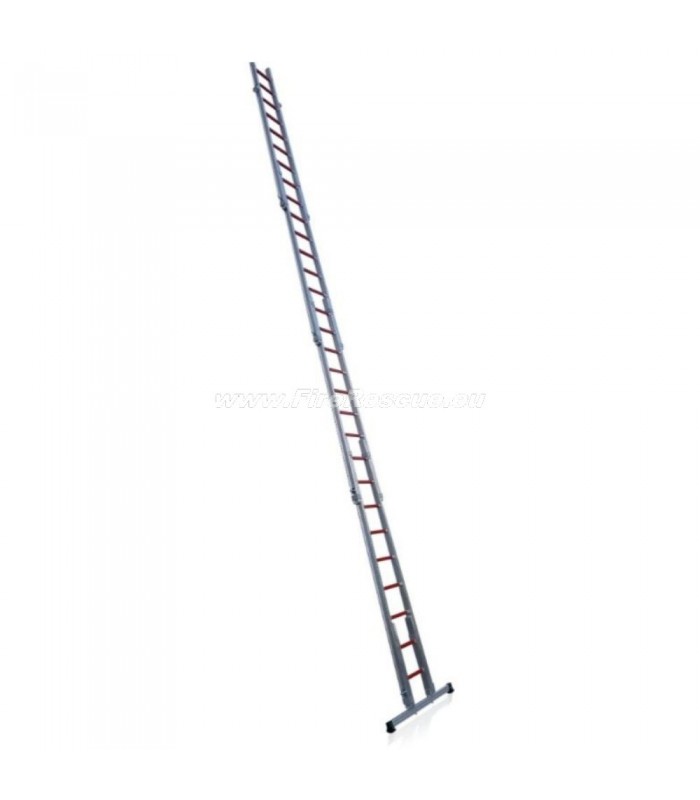

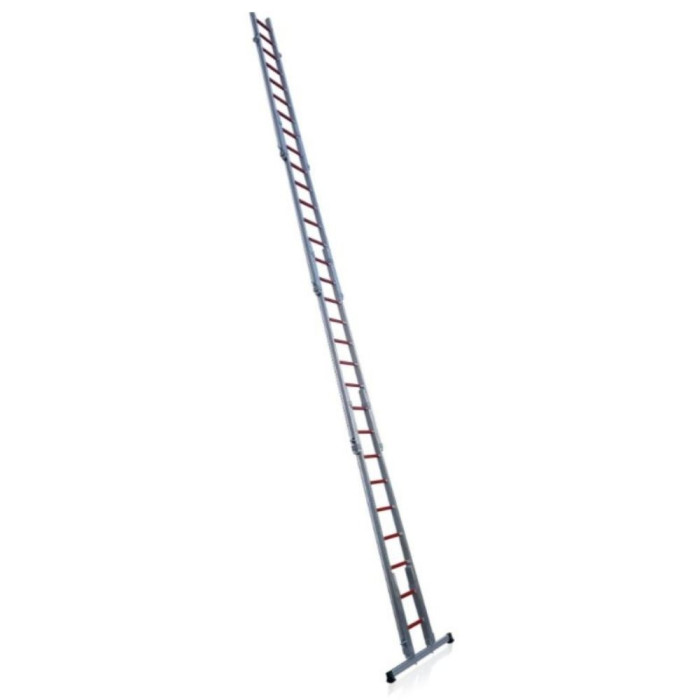

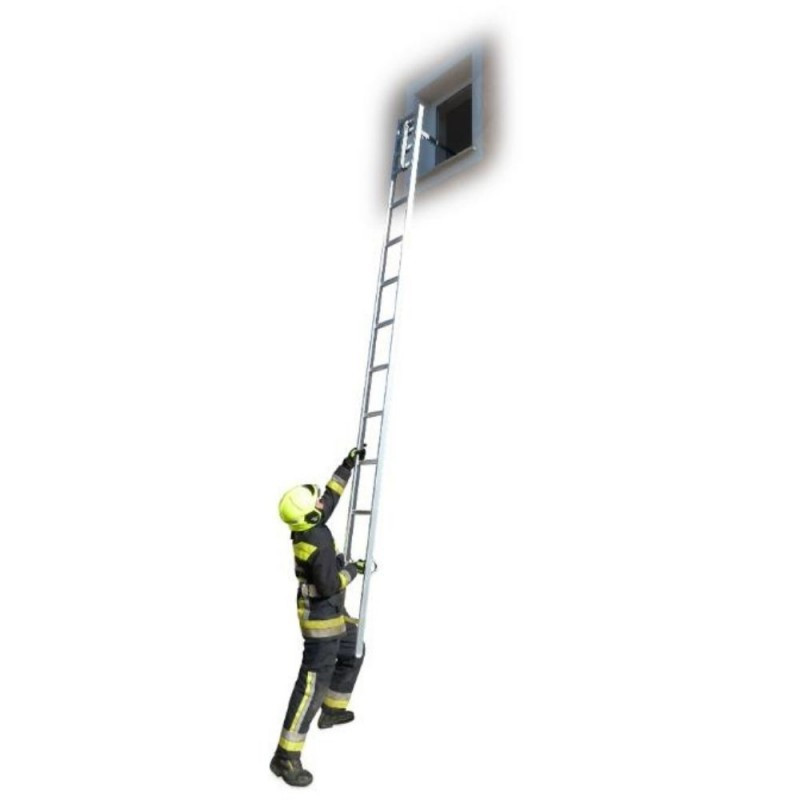

Leaning Ladder
The classic use of the Modular Scaling Ladders with a maximum ladder length up to 8,4 m.
2 variations:
- 4x FE-106 module combined with a 2-rung attachment (FE-102 or FE-107)
- 3x FE-106 module combined with FE-105 base part

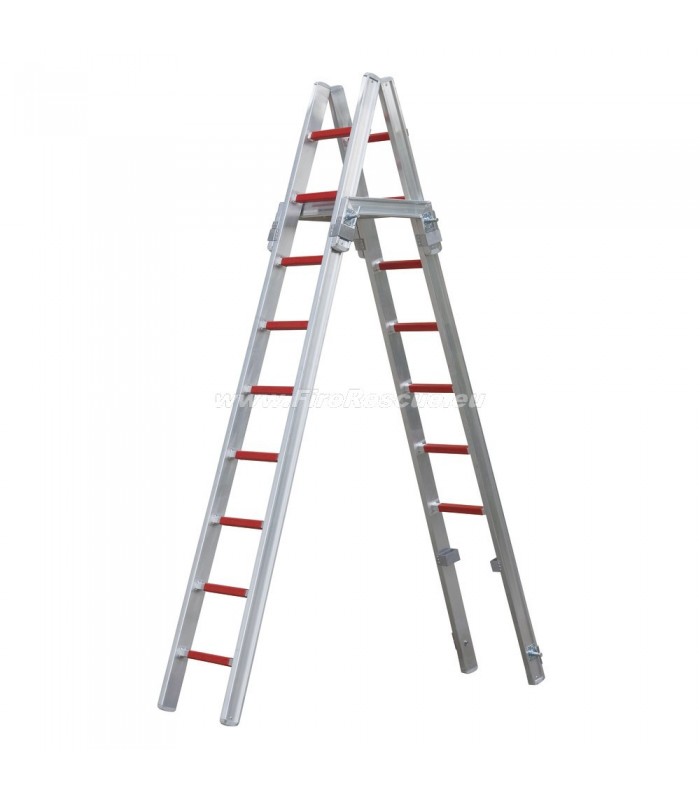

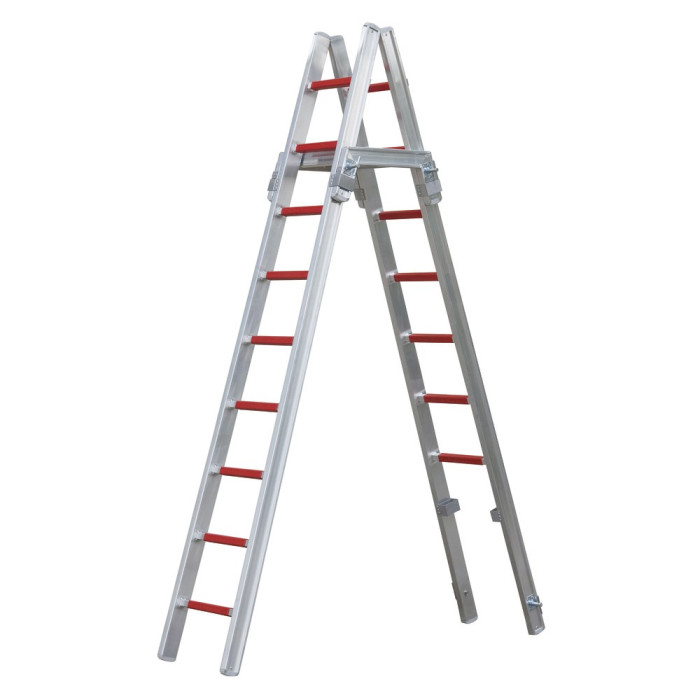

A-Frame Ladder

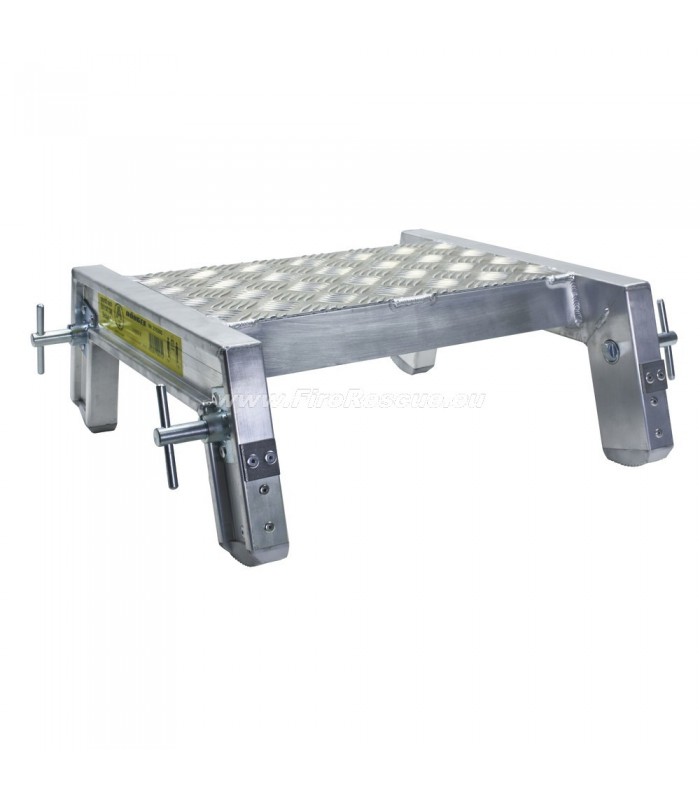

The F-104 Connection Platform accessory can be used to combine 2 or 4 Scaling Ladder modules to form an A-frame. This can be used with the attached hook to rescue a person from a manhole or as a hose bridge.

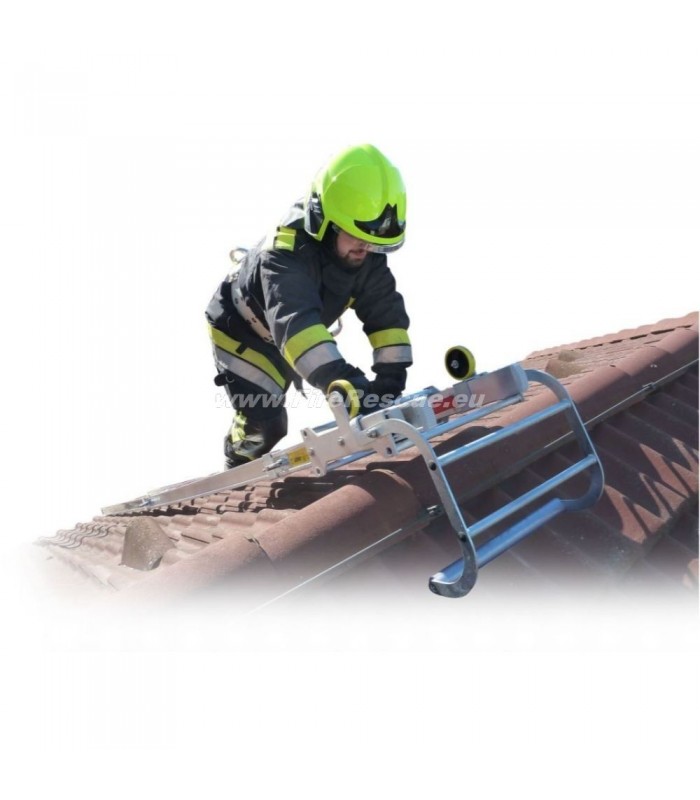

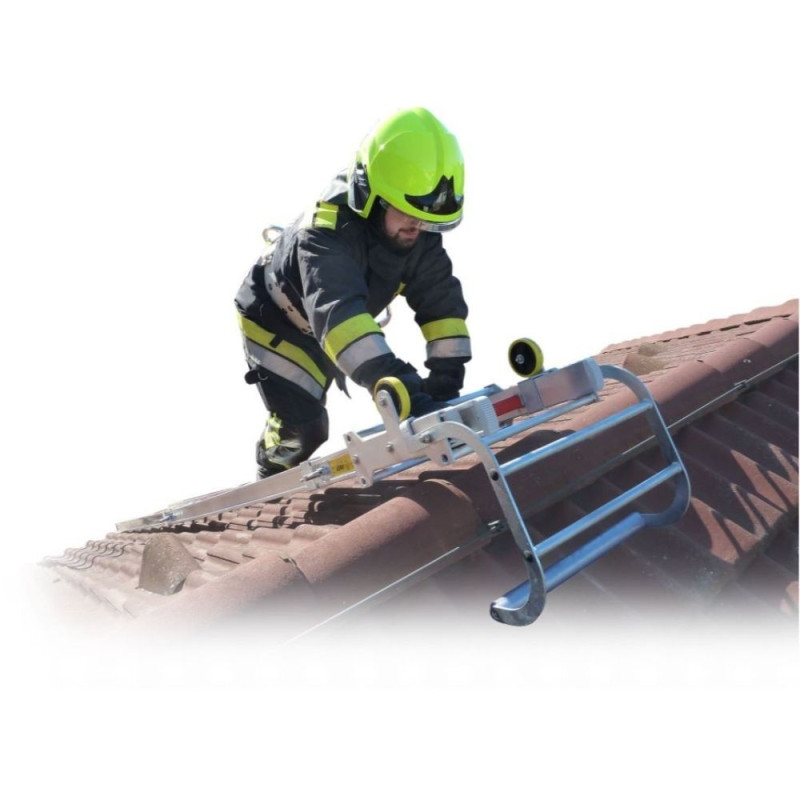

Roof Ladder

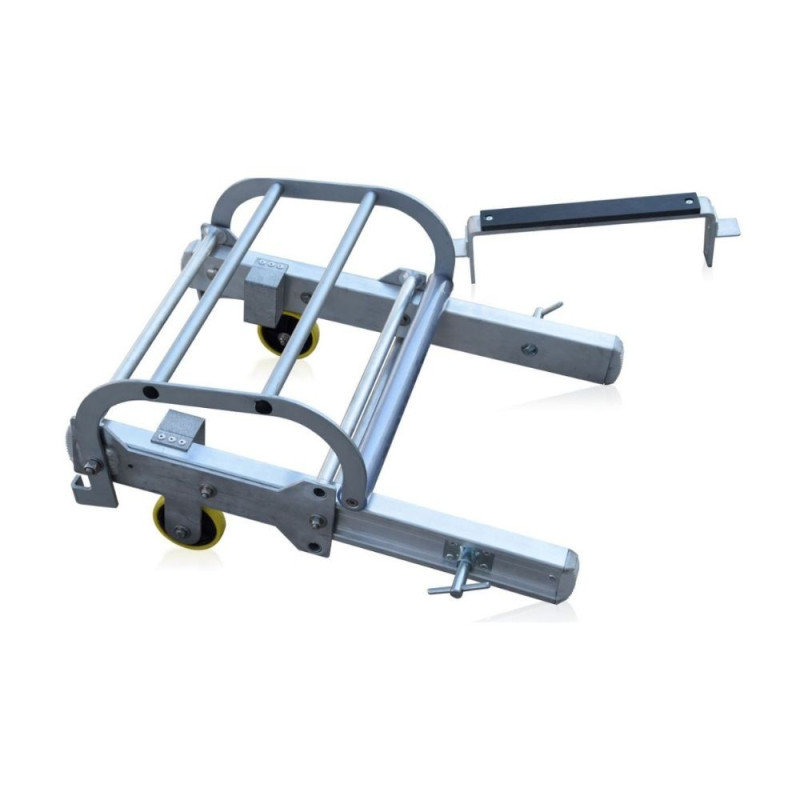

With the patented F-120 Roof Hook, the Modular Scaling Ladder becomes a roof ladder in just a few easy steps. Compact storage as well as quick and simple installation, makes the roof hook a unique product which is exclusively manufactured by JUST Leitern AG.

Truck Saver

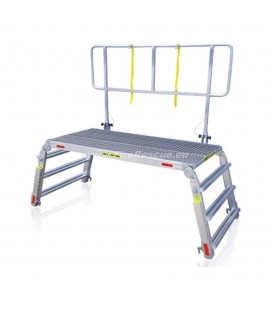

The FG-106 extension can be used in combination with the Scaling Ladder modules to create a rescue platform. The resulting platform can be used to rescue people from crashed vehicles.

Tested and manufactured according to EN 1147 and DIN Supplement 1 standards
- Built with interchangeable, insulated, anti-slip plastic rung covers
- Made with 28 mm corrugated square-profile rungs
- Can be combined with all popular models
- Suitable for a maximum load of 2 persons

Scaling ladder - models

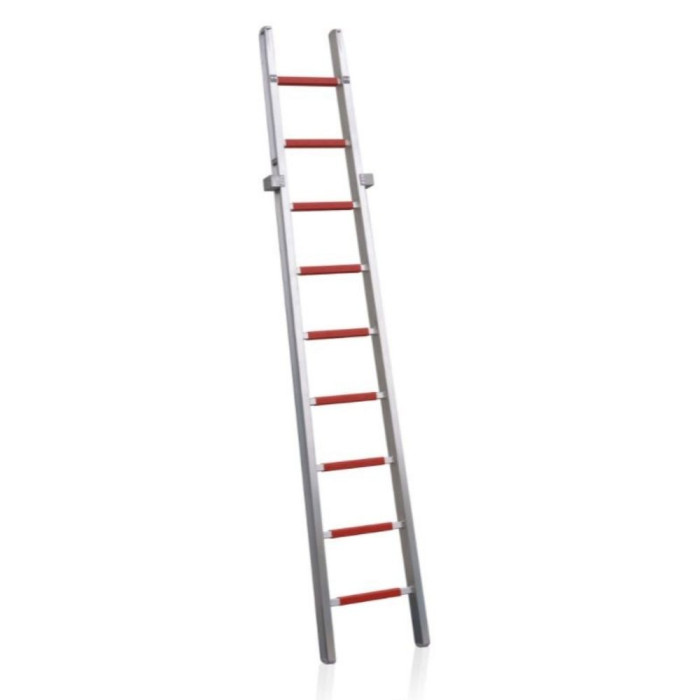

- FE-105, Base Module 9-runged, 8,5 kg, 2,66 m

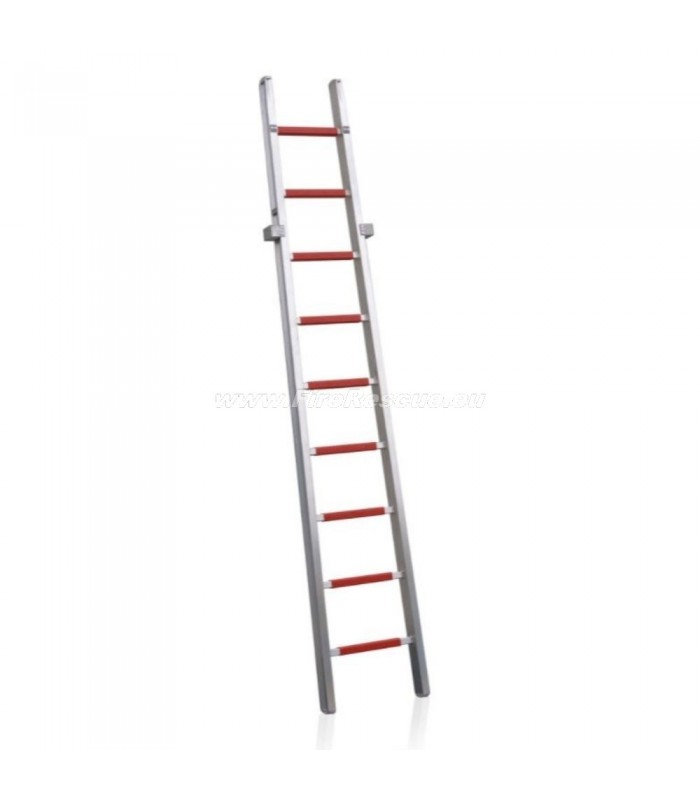

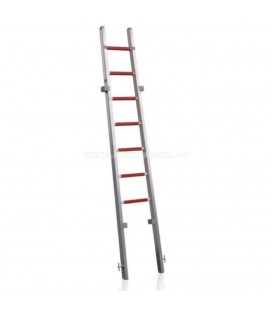

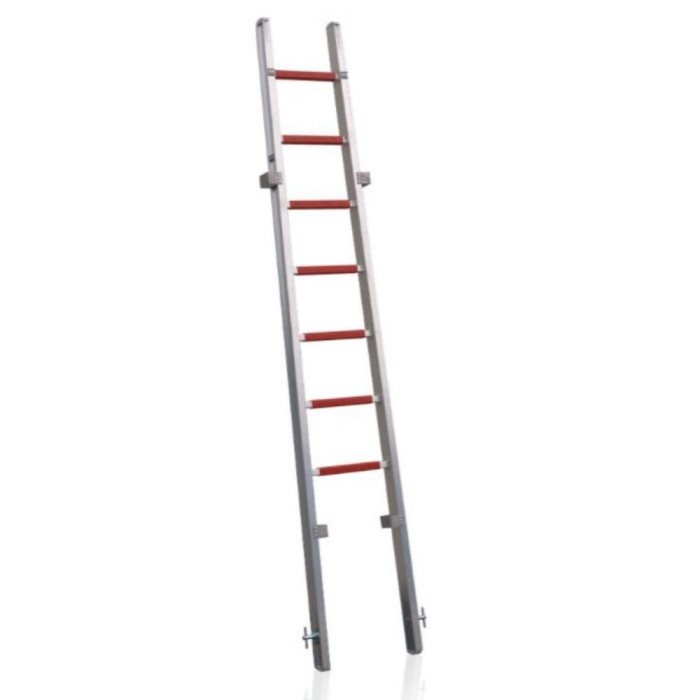

- FE-106, Attachment Module 7-runged, 8,0 kg, 2,66 m

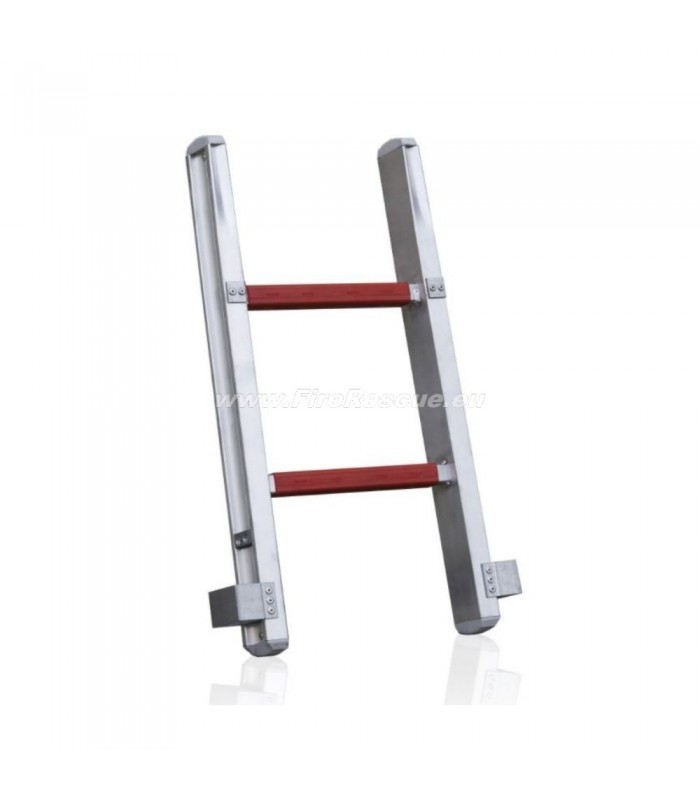

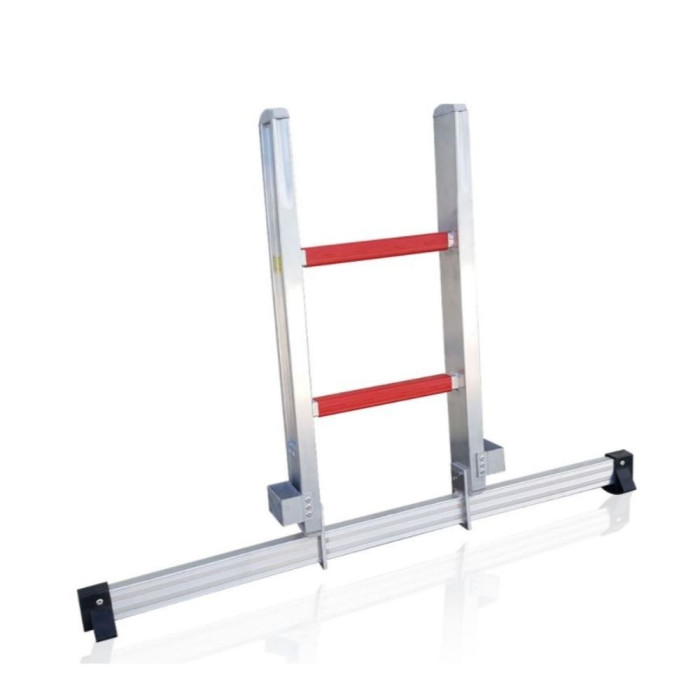

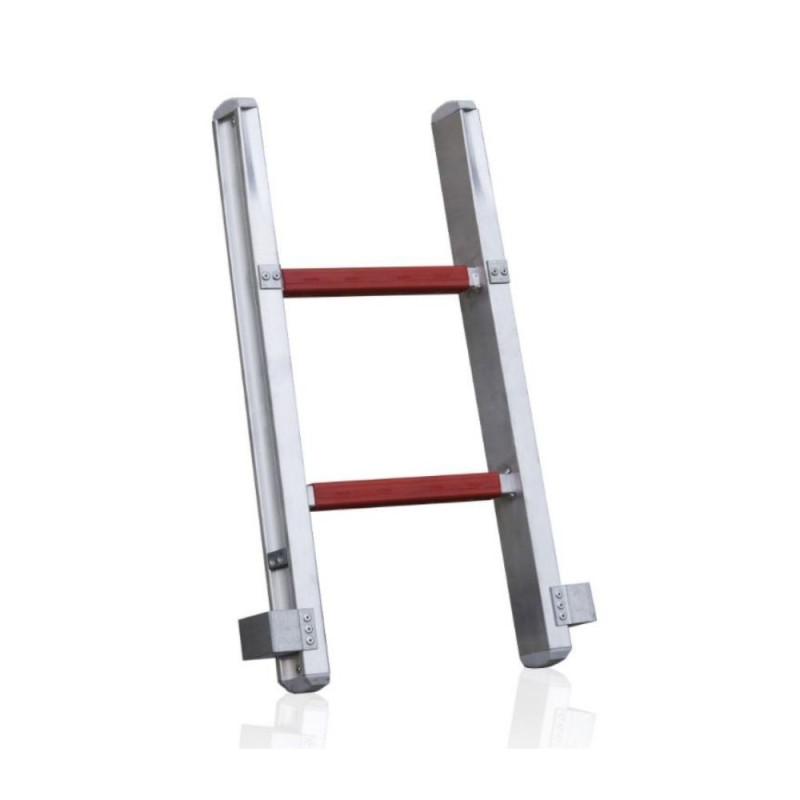

- FE-102, Attachment Module 2-runged with stabiliser bar, 4,5 kg, 0,85 m
- FE-107, Attachment Module 2-runged, 2,0 kg, 0,74 m

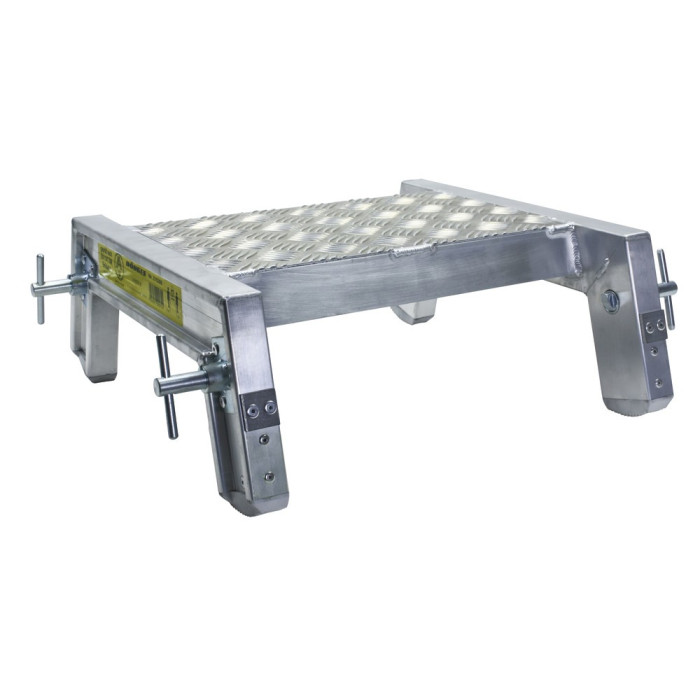

- FE-104, Connection Platform, 5,0 kg

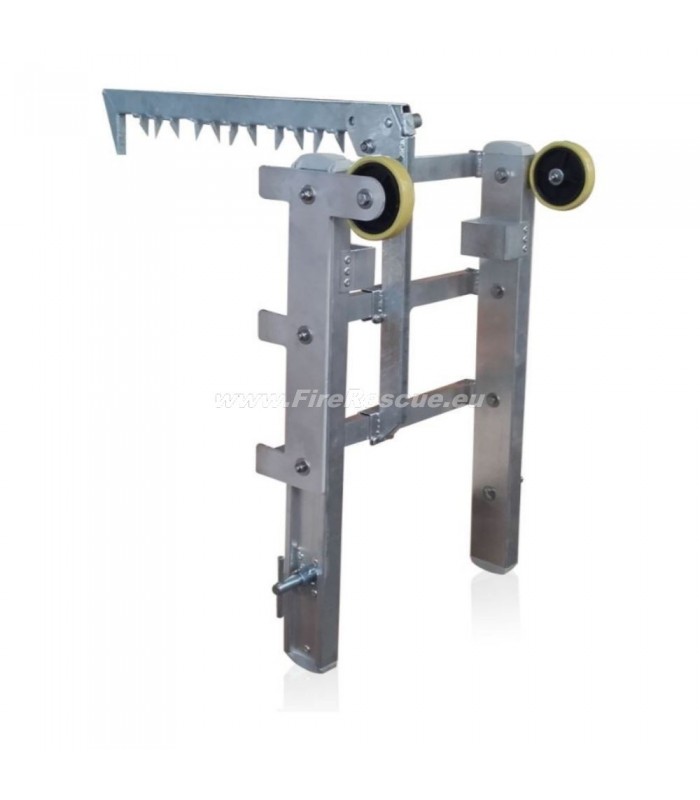

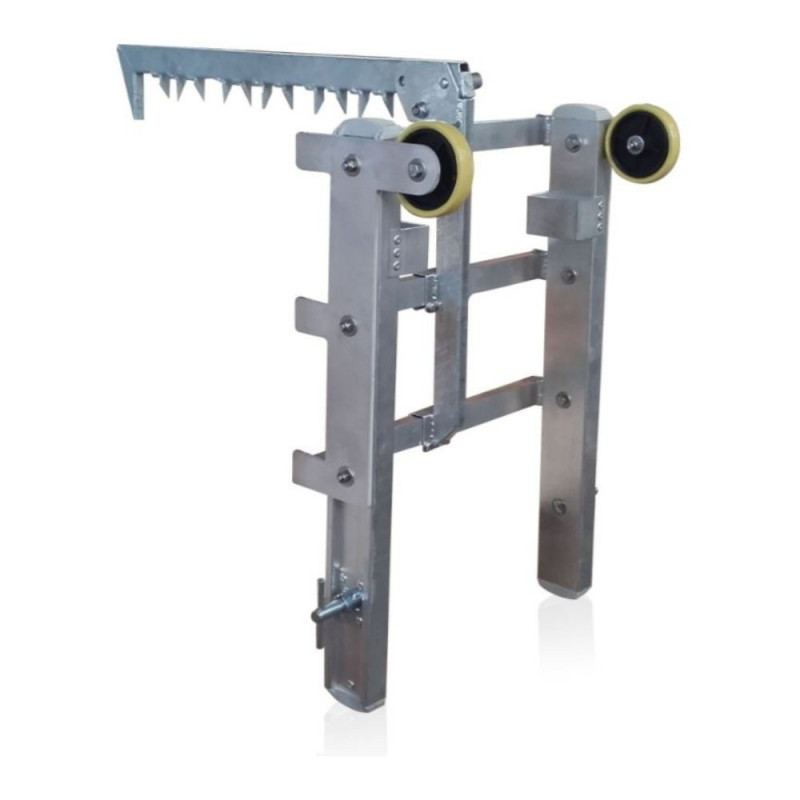

- F-120, Roof Hook, 9,3 kg

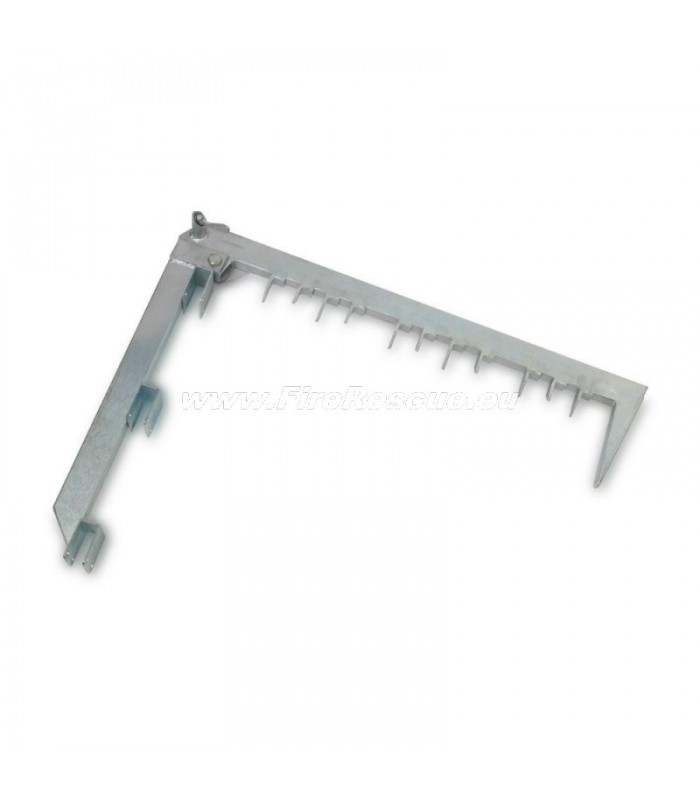

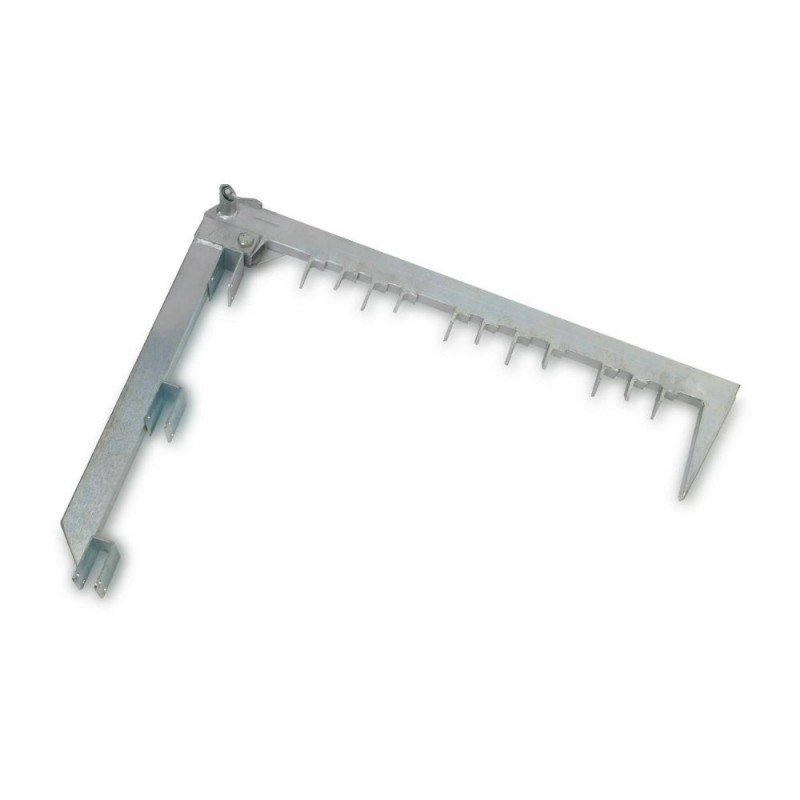

- FW-100R-046, Roof Hook with a hinging spike hook
