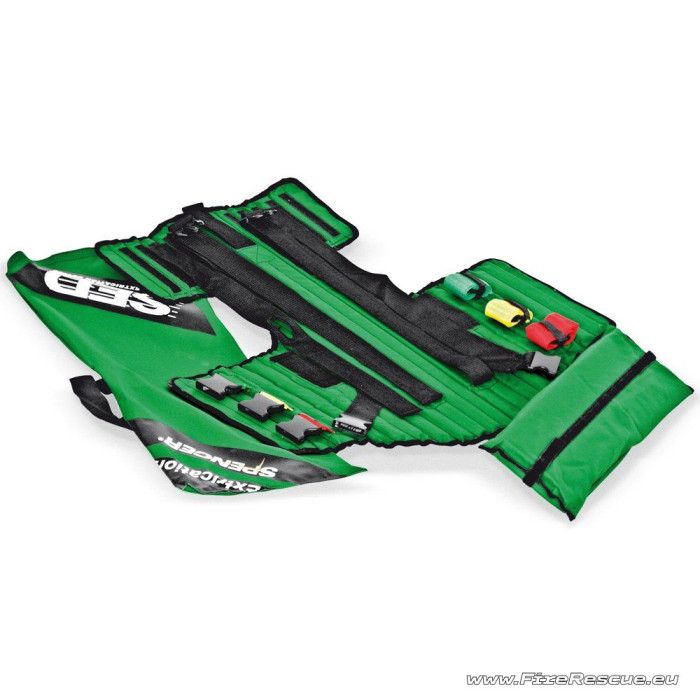

Spencer SED spine imobilizzation device is designed to provide fast and safe extrication of patients from vehicles or other confined spaces. It can be used on pregnant women, babies and children, immobilizing also the hip and pelvis areas.
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

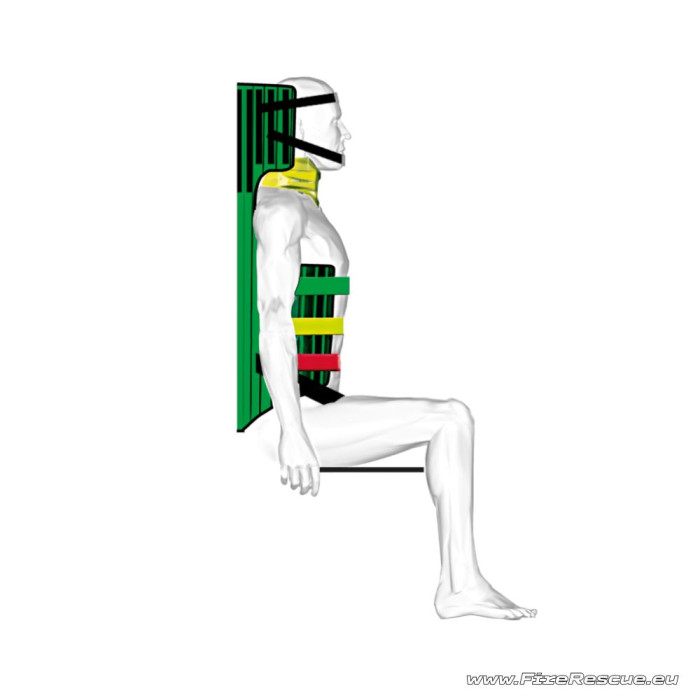

The SED extrication device is a first aid apparatus to be used for the extraction of a traumatised patient from a vehicle. It must be used after the application of the cervical collar to maintain immobilisation and head-torso alignment.
Features:
- Color coded belt system to make the application more intuitive and rapid
- PVC coating for an easy sanitation
- The separation of the rigid elements, allows high vertical rigidity and horizontal flexibility
- Equipped with cushion for the nuchal area
Technical data:
- Length: 830 mm
- Width: 900 mm
- Maximum thickness: 25 mm
- Overall dimensions wrapped with bag (approx.): 850 x 250 x 120 mm
- Belts length: 74 ± 2 cm
- Materials: PVC, Nylon, PP
- Weight without bag: 2,60 kg
- Weight with bag: 2,85 kg
- Maximum load capacity: 230 kg
- Class I MD compliant with UE Reg. 2017/745
Scope of delivery:

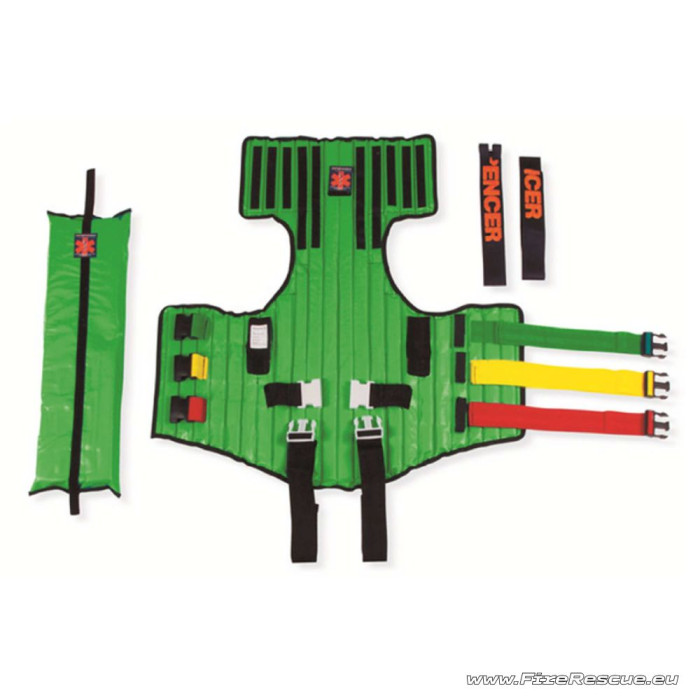

- SED immobilisation device
- Transport bag
